Tracing Lyα and LyC Escape in Galaxies with Mg II Emission

  • Authors: Xinfeng Xu, Alaina Henry, Timothy Heckman, John Chisholm, Gábor Worseck, Max Gronke, Anne Jaskot, Stephan R. McCandliss, Sophia R. Flury, Mauro Giavalisco, Zhiyuan Ji, Ricardo O. Amorín, Danielle A. Berg, Sanchayeeta Borthakur, Nicolas Bouche, Cody Carr, Dawn K. Erb, Harry Ferguson, Thibault Garel, Matthew Hayes, Kirill Makan, Rui Marques-Chaves, Michael Rutkowski, Göran Östlin, Marc Rafelski, Alberto Saldana-Lopez, Claudia Scarlata, Daniel Schaerer, Maxime Trebitsch, Christy Tremonti, Anne Verhamme, Bingjie Wang

Xinfeng Xu et al 2022 The Astrophysical Journal 933 .

  • Provider: AAS Journals

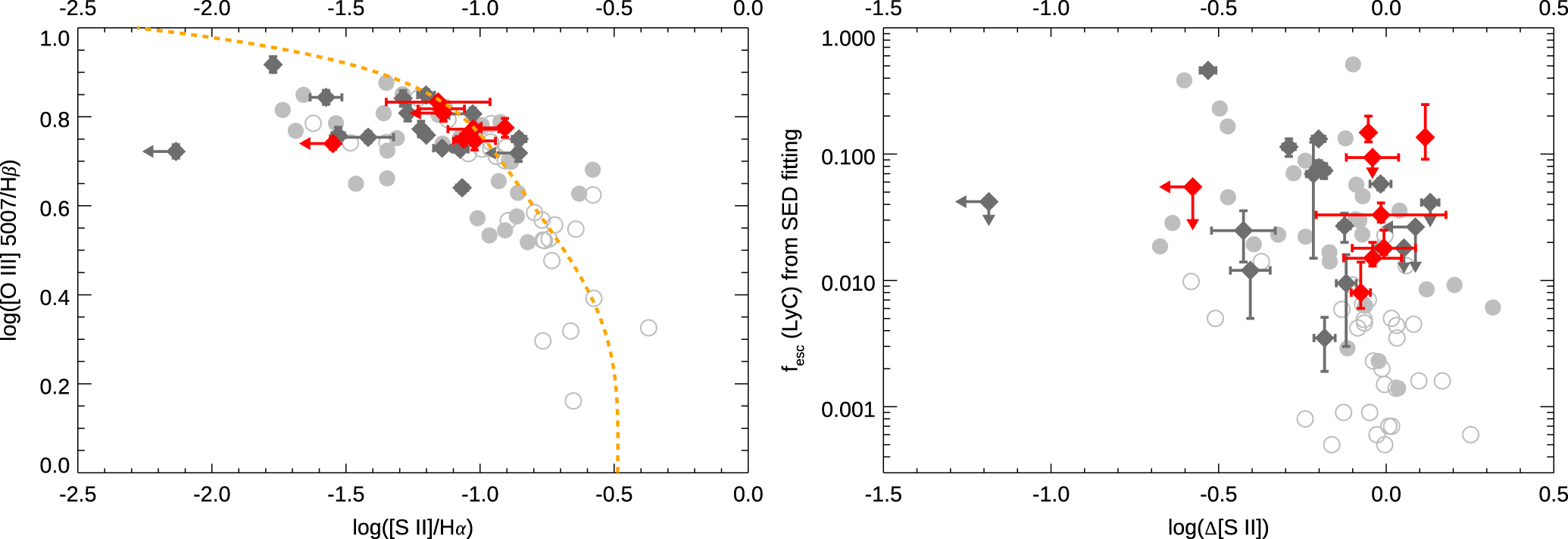

Caption: Figure 14.

Correlations involving the deficiency of [S II] λ λ6716, 6731. The colors and labels are the same as in Figure 12. Left: we compare the flux ratios between [O III] λ5007/Hβ and [S II] λλ6716, 6731/Hα. We show the fitted SDSS locus from Wang et al. (2019) as the orange line. Right: we compare the ﹩{f}_{\mathrm{esc}}^{\mathrm{LyC}}﹩ with [S II] deficiency. The latter is defined as the displacement of the measured log([S II]/Hα) from the orange line in the left panel (Wang et al. 2019, 2021). See discussion in Section 5.2.
