Observations of a White-light Flare Associated with a Filament Eruption

Authors: Y. L. Song , Y. Guo, H. Tian, X. S. Zhu, M. Zhang, and Y. J. Zhu

2018 The Astrophysical Journal 854 64.

Provider: AAS Journals

Caption: Figure 1.

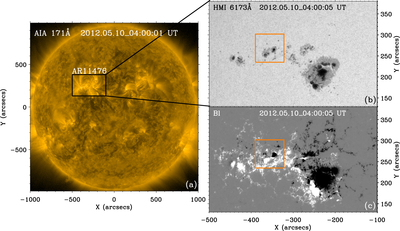

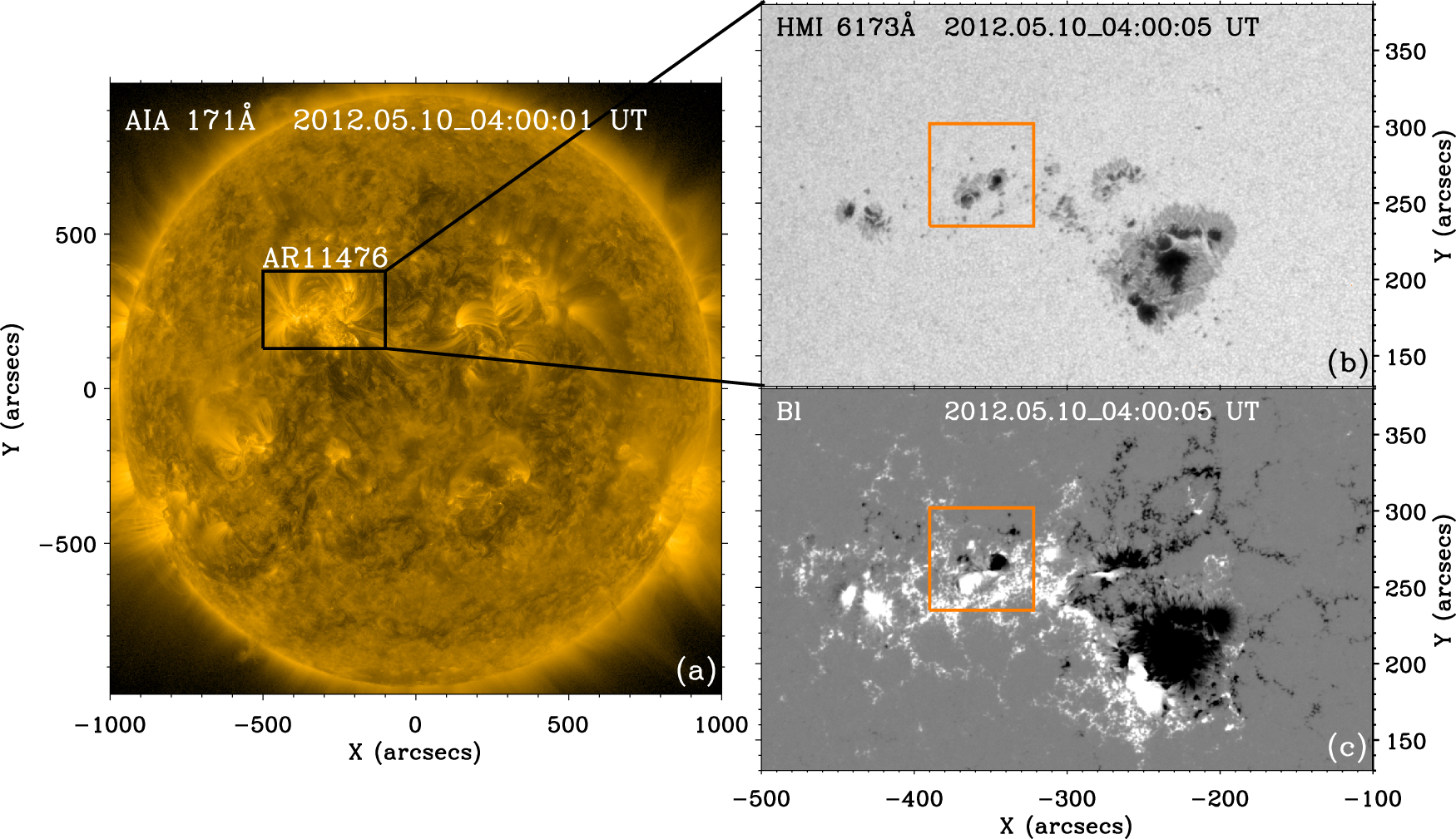

NOAA AR 11476. (a) AIA 171 Å full-disk image taken at 04:00 UT on 2012 May 10. The black box marks AR NOAA 11476. (b) HMI 6173 Å continuum intensity image of the AR taken at the same time. (c) HMI line-of-sight magnetogram (B_l) of the AR. Brown boxes in panels (b) and (c) mark the area where the flare occurred.
