Figure 11 from MULTIWAVELENGTH OBSERVATIONS OF A SLOW-RISE, MULTISTEP X1.6 FLARE AND THE ASSOCIATED ERUPTION

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

MULTIWAVELENGTH OBSERVATIONS OF A SLOW-RISE, MULTISTEP X1.6 FLARE AND THE ASSOCIATED ERUPTION

2015 The Astrophysical Journal 812 172.

Caption: Figure 11.

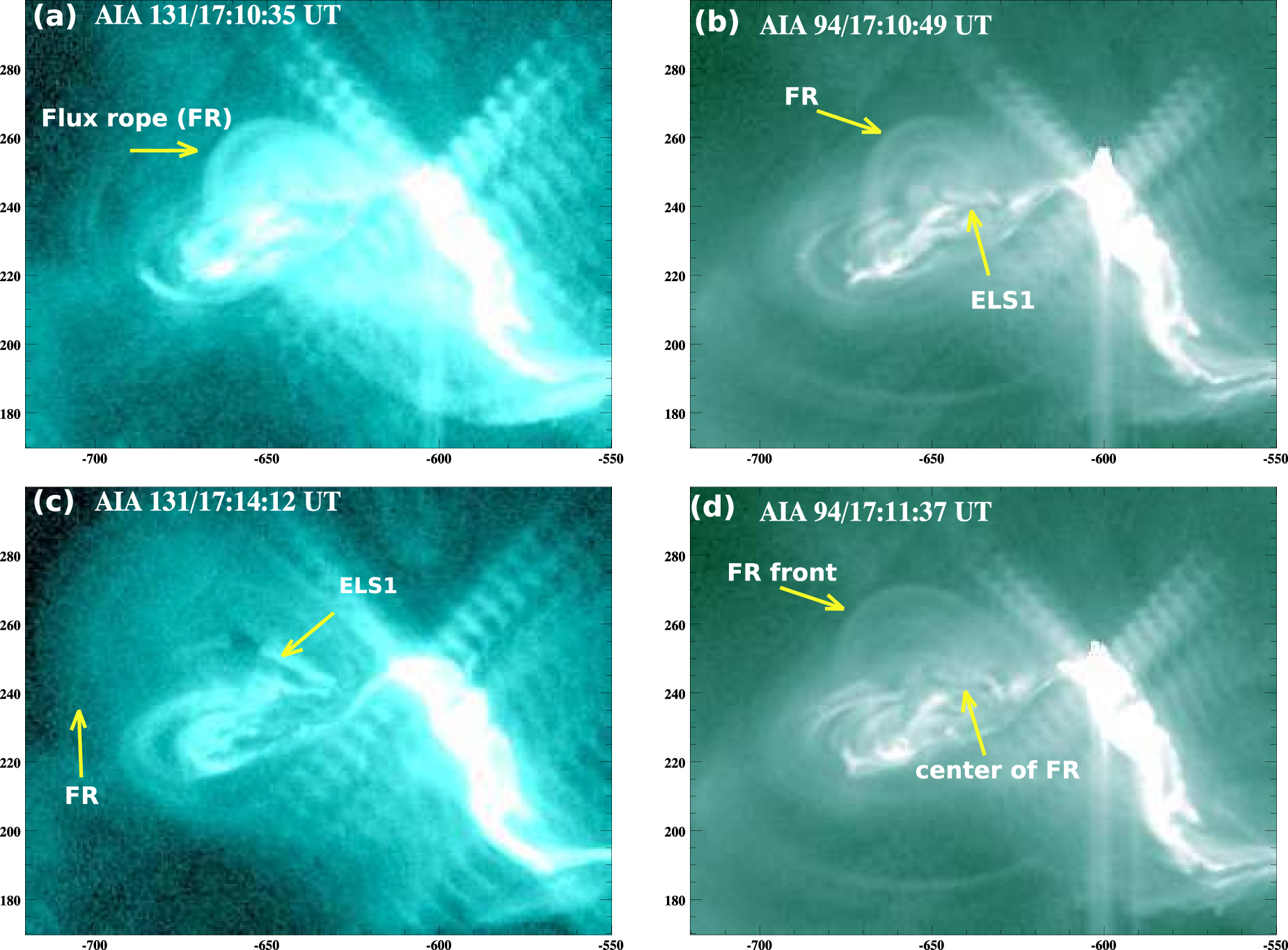

AIA 131 and 94 Å images showing expansion of the flux rope (FR). The x- and y-axes in each image are in arcseconds.

(An animation of this figure is available.)

The video/animation of this figure is available in the online journal.
