Figure 10 from MULTIWAVELENGTH OBSERVATIONS OF A SLOW-RISE, MULTISTEP X1.6 FLARE AND THE ASSOCIATED ERUPTION

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

MULTIWAVELENGTH OBSERVATIONS OF A SLOW-RISE, MULTISTEP X1.6 FLARE AND THE ASSOCIATED ERUPTION

Authors: V. Yurchyshyn, P. Kumar, K.-S. Cho, E.-K. Lim, and V. I. Abramenko

2015 The Astrophysical Journal 812 172.

Provider: AAS Journals

Caption: Figure 10.

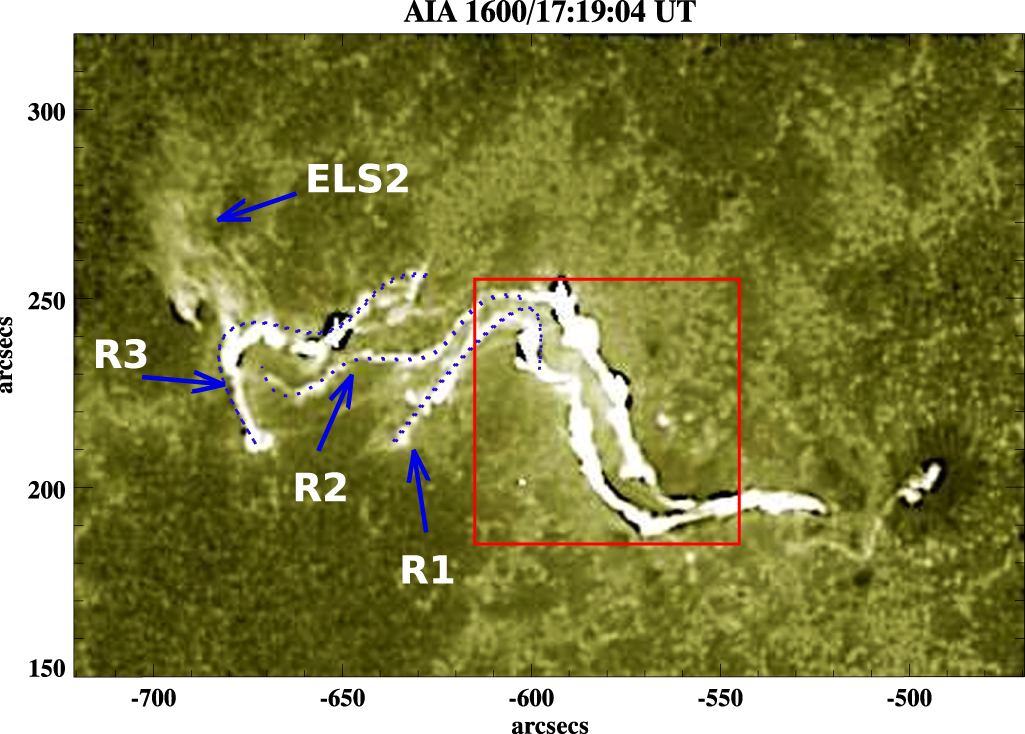

AIA 1600 Å image with the overplotted box indicating the NST FOV. R1, R2, and R3 mark three “J”- and inverse-“J”-shaped flare ribbons. The ELS1 was related to the R1 and R2 ribbons, while the ELS2 was associated with the R3 ribbon.
