libyt: An In Situ Interface Connecting Simulations with yt, Python, and Jupyter Workflows

  • Authors: Shin-Rong Tsai, 欣蓉 蔡, Hsi-Yu Schive, 熙于 薛, Matthew J. Turk

Shin-Rong Tsai et al 2026 The Astrophysical Journal Supplement Series 284 .

  • Provider: AAS Journals

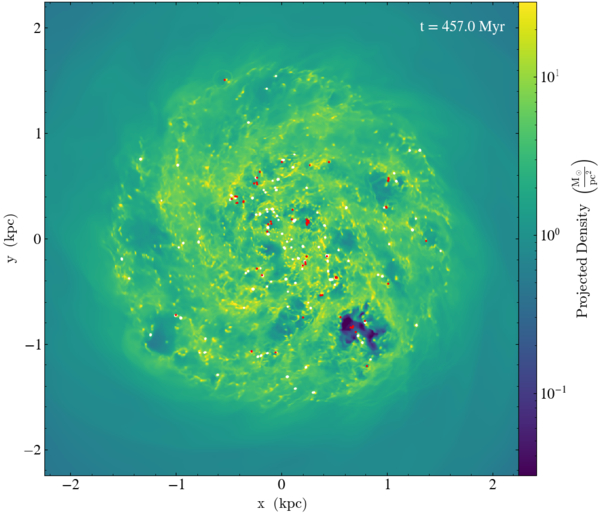

Caption: Figure 4.

Isolated dwarf galaxy simulation performed with GAMER. The projected gas density is annotated with young stars (white dots; age ≤ 2.5 Myr) and recent supernovae (red dots; exploded within the past 2.5 Myr). Gas collapses under self-gravity and cools via metal-line radiation. When the Jeans length becomes unresolved, star particles form stochastically and explode as CCSNe after 10 Myr, injecting 1051 erg thermal energy and driving blast waves that redistribute gas and regulate star formation. The dark-blue region near (xy) = (0.7 kpc, −0.8 kpc) marks a recent strong explosion. An animation is available that spans 0–750 Myr with a real-time duration of 47 s.

(An animation of this figure is available in the online article.)

(An animation of this figure is available.)

The video/animation of this figure is available in the online journal.
