First Results from ALPPS: A Sub-Alfvénic Streamer in SVS 13A

  • Authors: P. C. Cortés, J. E. Pineda, T.-H. Hsieh, J. J. Tobin, P. Saha, J. M. Girart, V. J. M. Le Gouellec, I. W. Stephens, L. W. Looney, E. Koumpia, M. T. Valdivia-Mena, L. Cacciapuoti, C. Gieser, S. S. R. Offner, P. Caselli, P. Sanhueza, D. Segura-Cox, M. Fernández-López, K. Morii, B. Huang, F. O. Alves, Q. Zhang, W. Kwon, C. L. H. Hull, Z.-Y. Li

P. C. Cortés et al 2025 The Astrophysical Journal Letters 992 .

  • Provider: AAS Journals

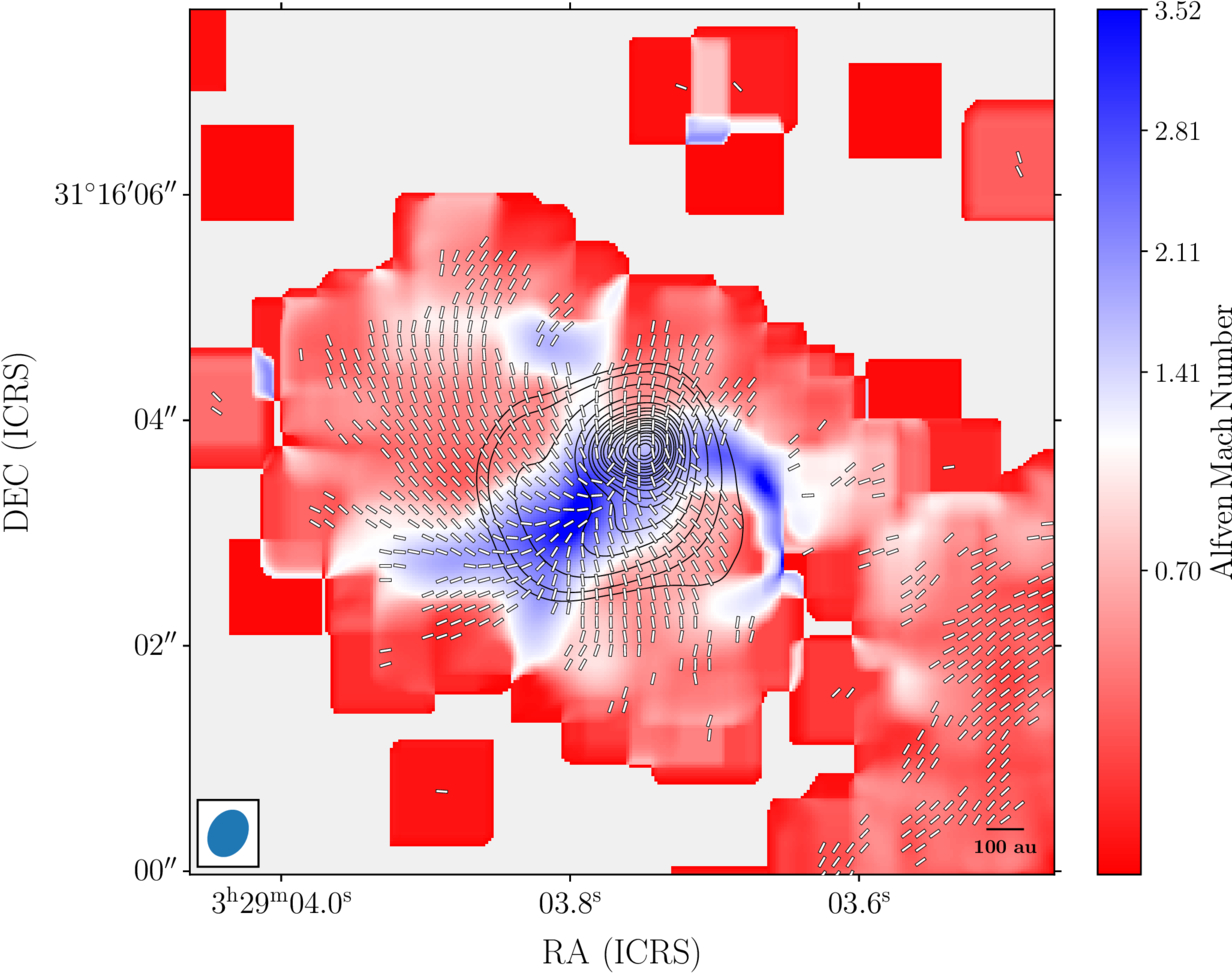

Caption: Figure 12.

The Alfvén Mach number from the SVS 13A magnetic field map is shown in a color scale. The color white represents the trans-Alfvénic value of ﹩{{ \mathcal M }}_{{\rm{A}}}=1﹩, while red indicates the sub-Alfvénic regime. The magnetic field morphology is superposed as white pseudovectors plotted every 5 pixels. The map was produced from the data imaged using robust = 1. The beam is depicted as a blue ellipse in the bottom left corner, and the scale is displayed in the bottom right corner.
