Caption: Figure A3.

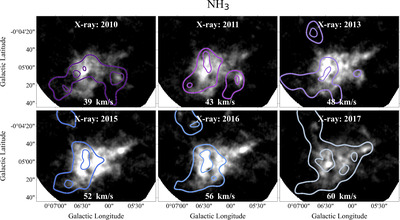

A comparison between each year of X-ray data and NH3 integrated images made using an equal number of consecutive velocity slices contained within the full velocity range of the Sticks cloud. Each panel shown has the average velocity indicated at the bottom of the image. The contours for each X-ray year were matched with an integrated NH3 image sequentially. We see relatively good agreement between the X-ray and molecular gas features, especially in the bottom three panels. The contour colors and widths are the same as shown in Figure 2. This analysis is the same as that shown in Figure 2 using NH3 instead of H2CO.
