The SPOTS Models: A Grid of Theoretical Stellar Evolution Tracks and Isochrones for Testing the Effects of Starspots on Structure and Colors

  • Authors: Garrett Somers, Lyra Cao, and Marc H. Pinsonneault

2020 The Astrophysical Journal 891 29.

  • Provider: AAS Journals

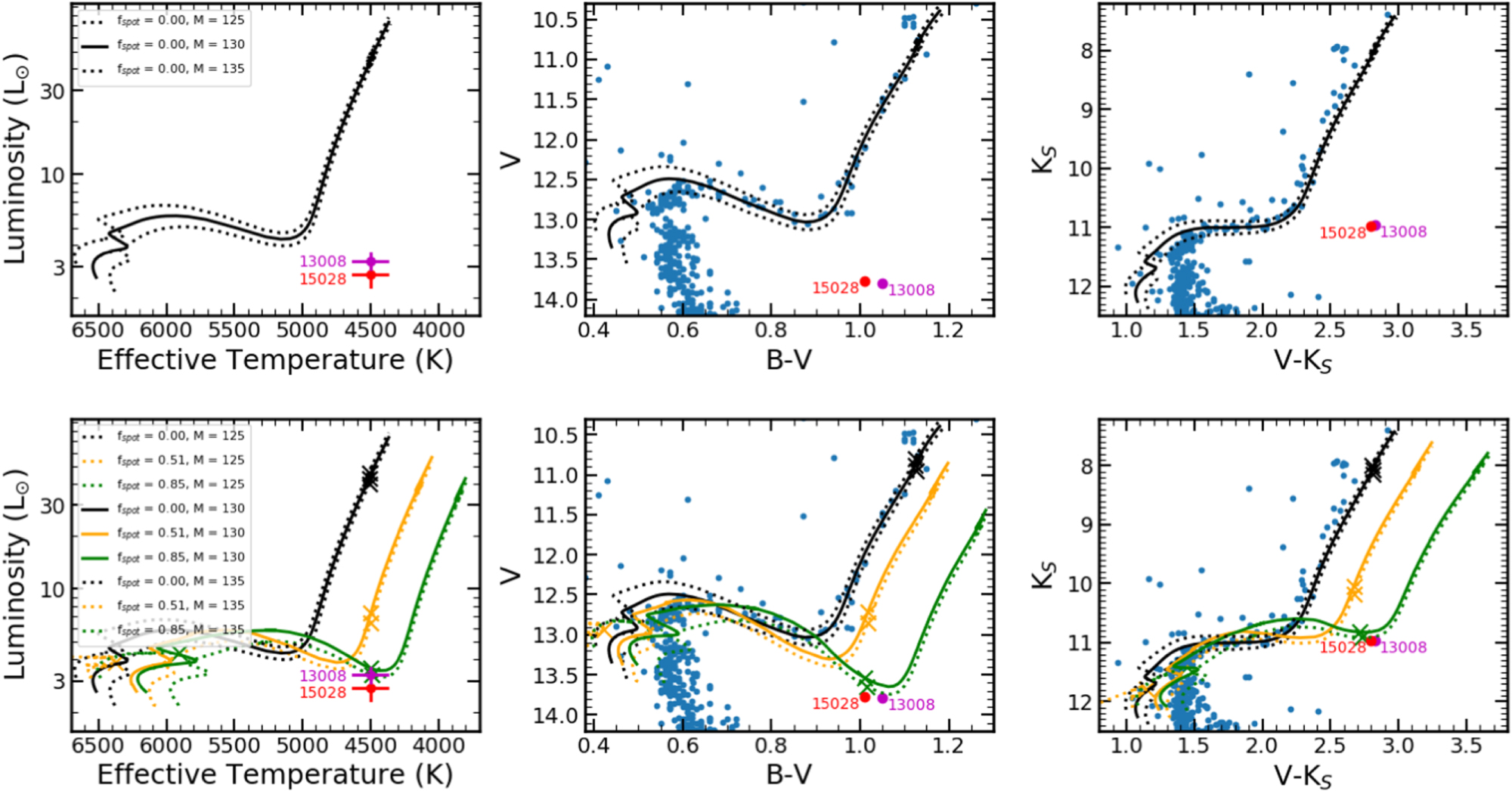

Caption: Figure 10.

Comparison of the SPOTS models to the sub-subgiants of M67. Top left: spotless models from 1.25 to 1.35 M, the approximate turn-off mass of M67, compared to two SSGs from the cluster. The models cannot reproduce their location at all. Top center/right: same as top left, but in two different CMDs. We also show a catalog of M67 members as blue points, demonstrating that our models predict the post-MS of normal stars accurately. Bottom: same as top, but now including fspot = 0.51 (yellow) and 0.85 (green) SPOTS models. The models cool and reduce their luminosity enough to predict the locations of the SSGs in all three panels simultaneously.
