Unveiling Metal Mixing in a Grand-design Spiral: A UV/Optical Multiphase Spatially Resolved Study of M83

  • Authors: Adarsh Ranjan, Bethan L. James, Svea Hernandez, R. Rickards Vaught, Nimisha Kumari, Alessandra Aloisi, Peter Zeidler

Adarsh Ranjan et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

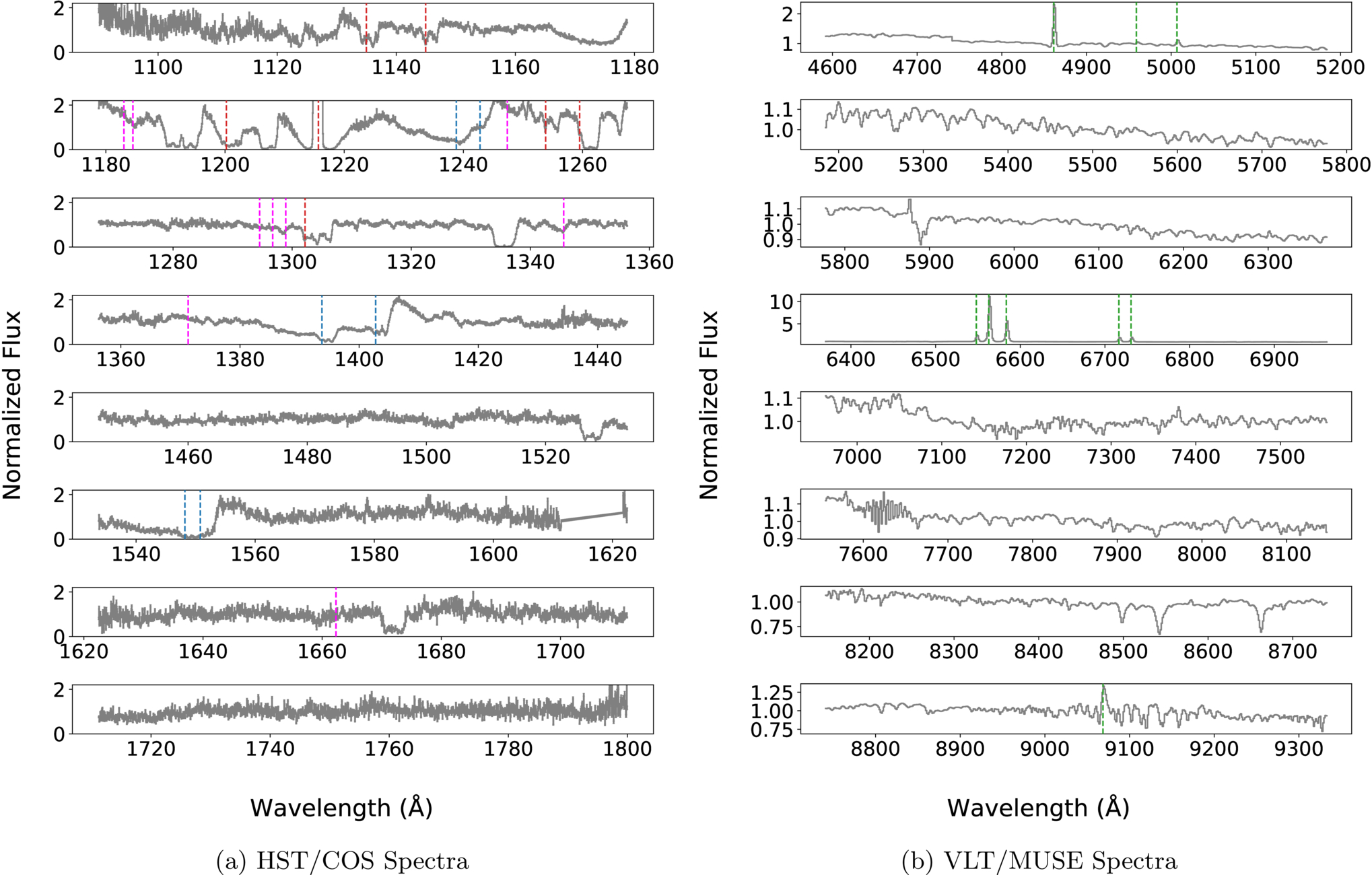

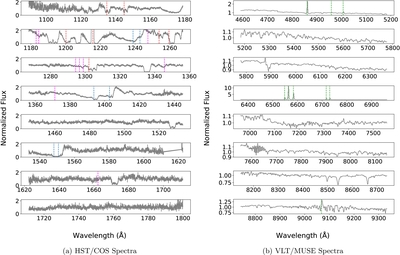

Caption: Figure 2.

HST/COS FUV spectra (left) and VLT/MUSE optical spectra (right) observed toward YSC M83-POS-1 in gray. The spaxels from VLT/MUSE IFU observations have been extracted within the COS aperture to make both spectra cospatial. The blue, magenta, red, and green dashed vertical lines show the location of the prominent lines from wind+ISM, stellar photospheric, ISM absorption, and nebular emission features, respectively.
