Parabolic Jets from the Spinning Black Hole in M87

Authors: Masanori Nakamura, Keiichi Asada, Kazuhiro Hada, Hung-Yi Pu, Scott Noble, Chihyin Tseng, Kenji Toma, Motoki Kino, Hiroshi Nagai, Kazuya Takahashi, Juan-Carlos Algaba, Monica Orienti, Kazunori Akiyama, Akihiro Doi, Gabriele Giovannini, Marcello Giroletti, Mareki Honma, Shoko Koyama, Rocco Lico, Kotaro Niinuma, and Fumie Tazaki

2018 The Astrophysical Journal 868 146.

Provider: AAS Journals

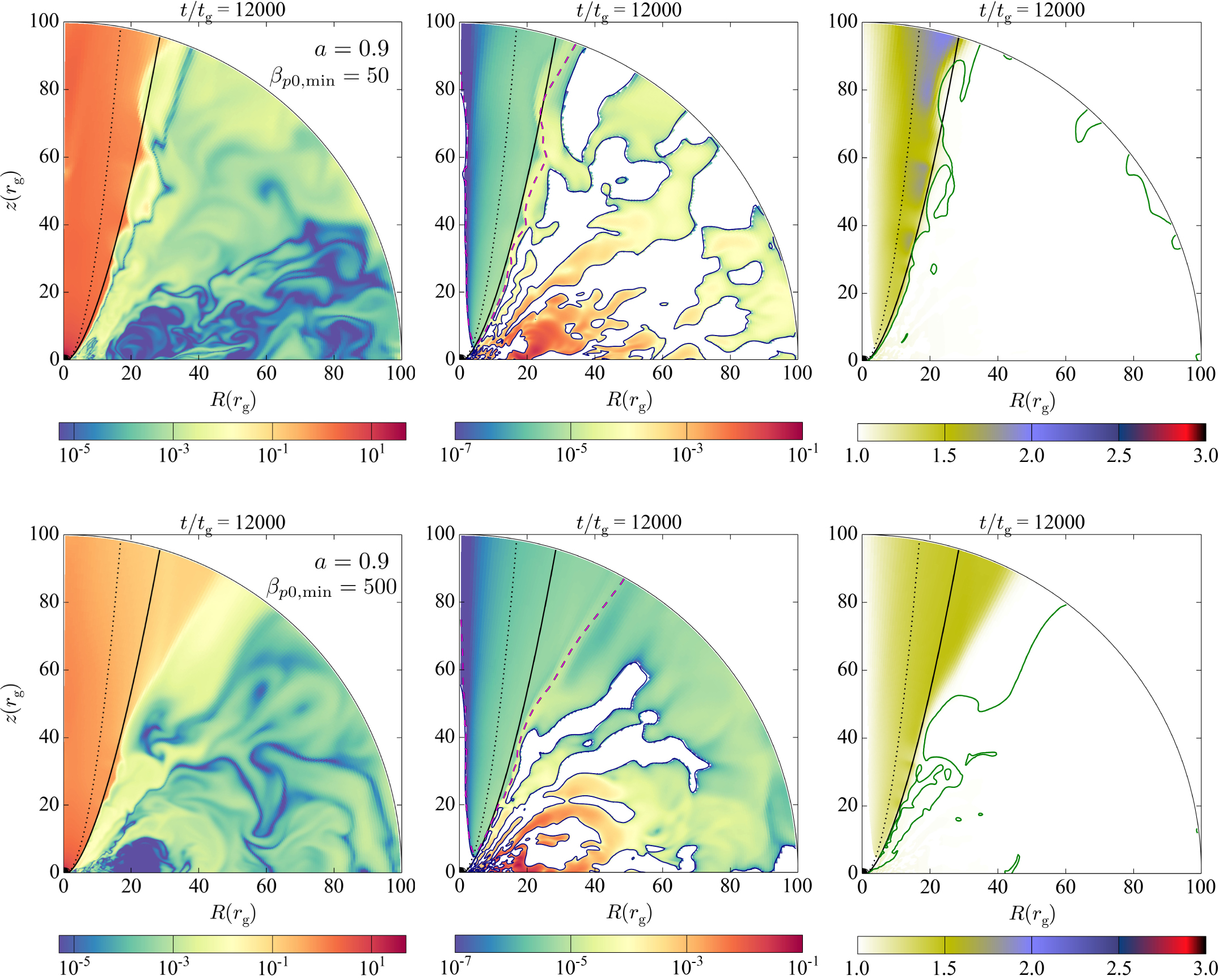

Caption: Figure 21.

Final (t/t_g = 12,000) snapshots of two different initial conditions (the black hope spin a = 0.9 is fixed); β_p0,min = 50 (top) and β_p0,min = 500 (bottom). Color-filled contours show the magnetic energy per unit particle b²/ρ (left), the magnitude of the outgoing radial mass flux density (middle), and the Lorentz factor Γ (right). Readers can refer to Figures 8, 11, and 12 (a = 0.9) for comparison.
