Parabolic Jets from the Spinning Black Hole in M87

Authors: Masanori Nakamura, Keiichi Asada, Kazuhiro Hada, Hung-Yi Pu, Scott Noble, Chihyin Tseng, Kenji Toma, Motoki Kino, Hiroshi Nagai, Kazuya Takahashi, Juan-Carlos Algaba, Monica Orienti, Kazunori Akiyama, Akihiro Doi, Gabriele Giovannini, Marcello Giroletti, Mareki Honma, Shoko Koyama, Rocco Lico, Kotaro Niinuma, and Fumie Tazaki

2018 The Astrophysical Journal 868 146.

Provider: AAS Journals

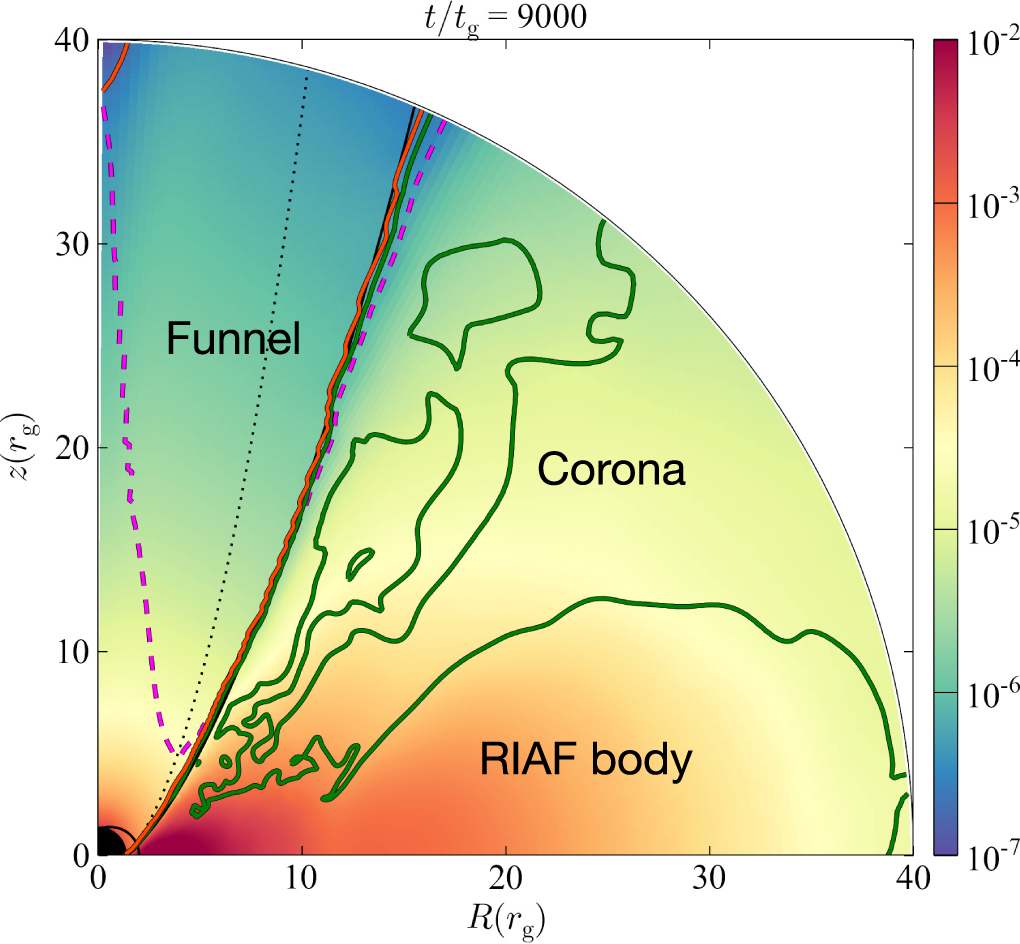

Caption: Figure 5.

Final snapshot of the fiducial run (a = 0.9375); t/t_g = 9000. A color-filled contour shows the total pressure p + b²/2 (in the fluid frame). Contours of equipartition quantities are exhibited (the upper computational domain; 0 ≤ θ ≤ π/2). An orange solid line shows b²/ρ = 1, while green solid lines show β_p = 1. ﹩-{u}_{t}=1﹩ (Be ≈ 0) is shown with a magenta dashed line. Other components are identical to those in Figure 2.
