Figure 6 from Parabolic Jets from the Spinning Black Hole in M87

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Parabolic Jets from the Spinning Black Hole in M87

Authors: Masanori Nakamura, Keiichi Asada, Kazuhiro Hada, Hung-Yi Pu, Scott Noble, Chihyin Tseng, Kenji Toma, Motoki Kino, Hiroshi Nagai, Kazuya Takahashi, Juan-Carlos Algaba, Monica Orienti, Kazunori Akiyama, Akihiro Doi, Gabriele Giovannini, Marcello Giroletti, Mareki Honma, Shoko Koyama, Rocco Lico, Kotaro Niinuma, and Fumie Tazaki

2018 The Astrophysical Journal 868 146.

Provider: AAS Journals

Caption: Figure 6.

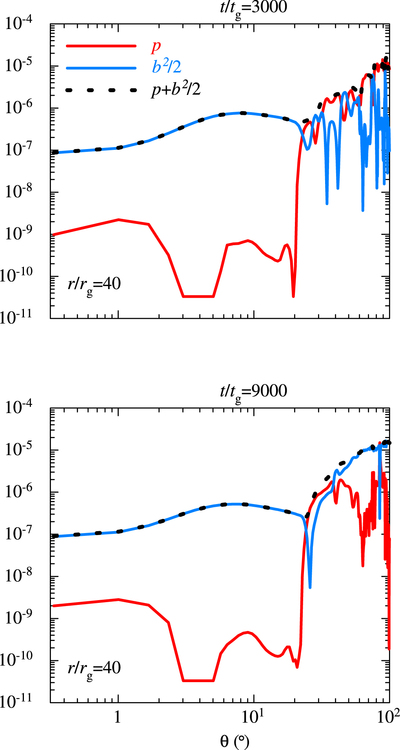

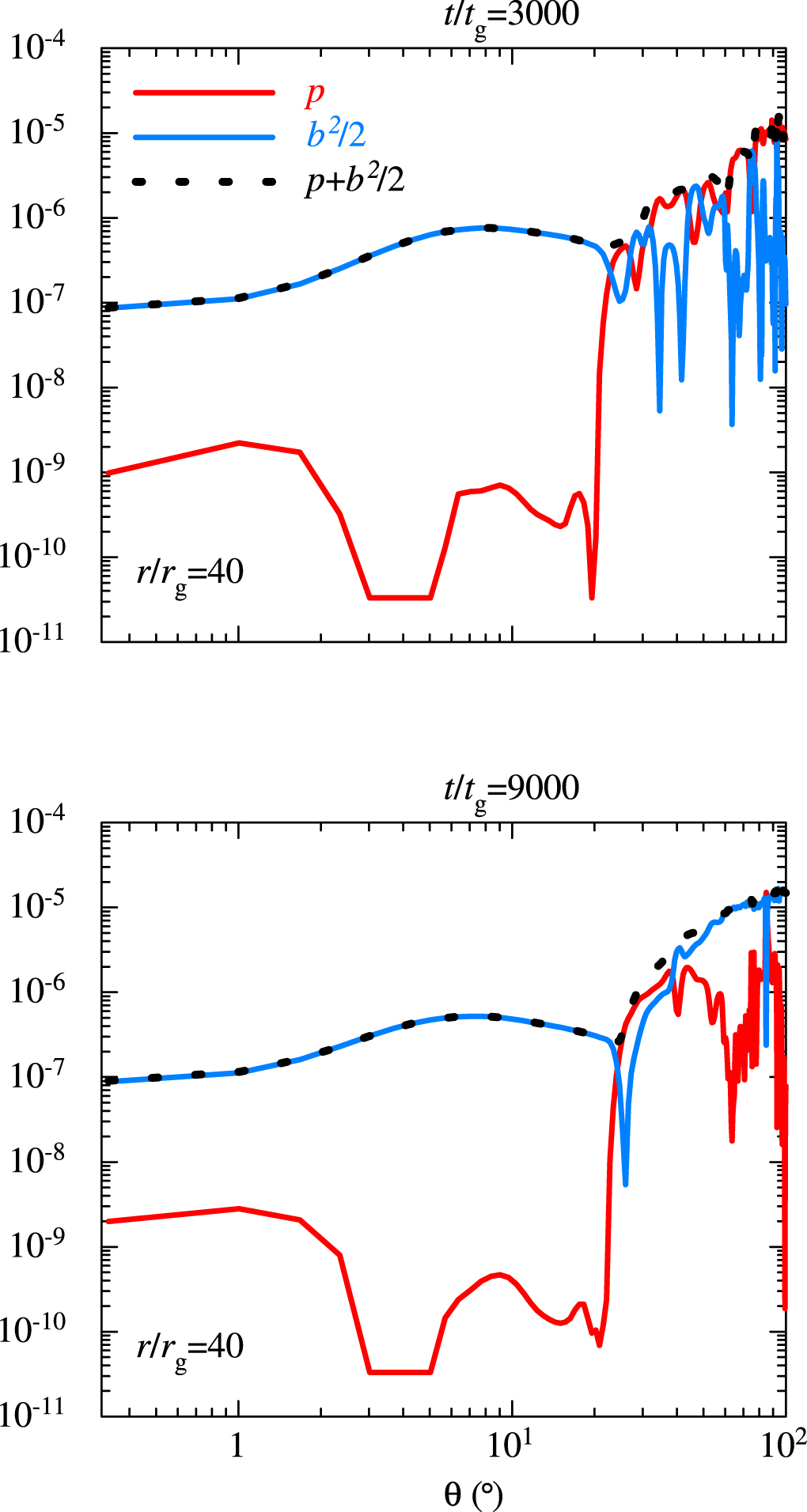

θ cross section at r/r_g = 40 showing the gas pressure (red solid line), the magnetic pressure (blue solid line), and their sum (the total pressure; black dotted line) in the fiducial run (a = 0.9375); t/t_g = 3000 (top) and 9000 (bottom).
