RELEASE HISTORY AND TRANSPORT PARAMETERS OF RELATIVISTIC SOLAR ELECTRONS INFERRED FROM NEAR-THE-SUN IN SITU OBSERVATIONS

  • Authors: N. Agueda, and D. Lario

2016 The Astrophysical Journal 829 131.

  • Provider: AAS Journals

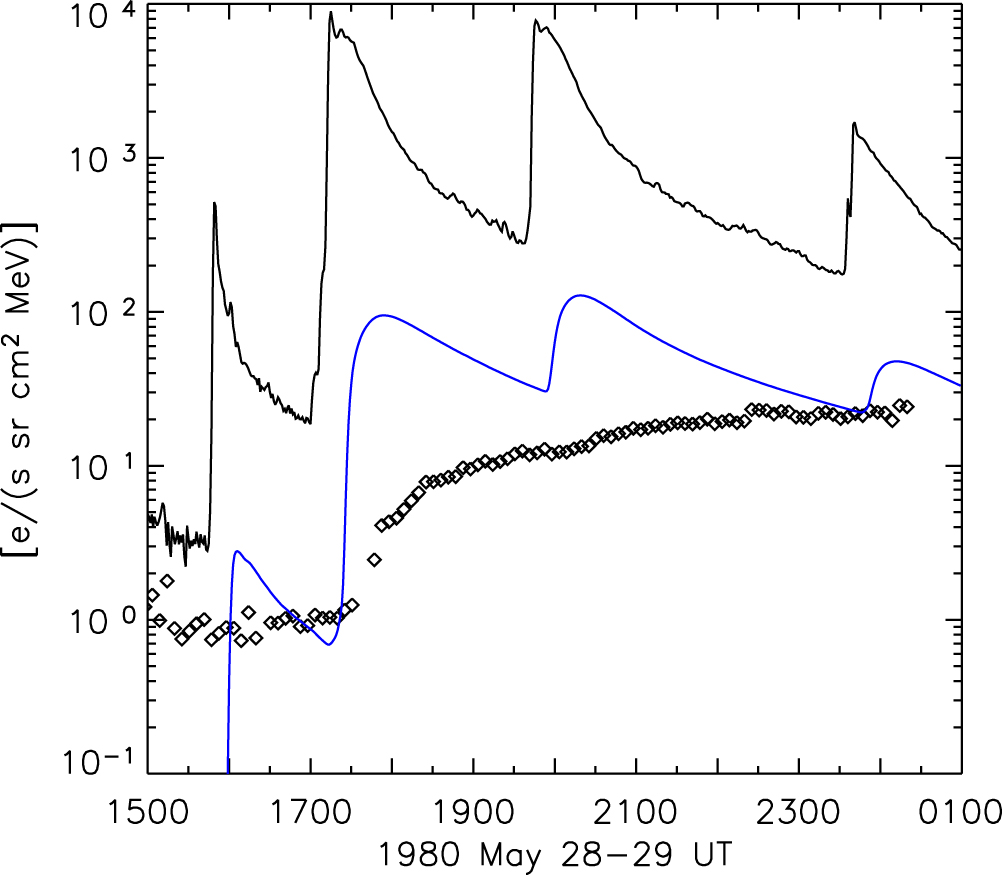

Caption: Figure 11.

Electron 300–800 keV intensities observed at 0.31 au by Helios-1 (solid black curve). Intensities expected at 1 au (blue curves) assuming the same interplanetary transport conditions and the same injection histories deduced for Helios-1 scaled according to a Gaussian distribution centered at the source region (see text for details). Electron 220–800 keV intensities observed by IMP-8 at 1 au (black diamonds).
