Fig. 12 from The Kinematics and Physical Conditions of the Ionized Gas in NGC 4593 from Chandra High‐Energy Grating Spectroscopy

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Kinematics and Physical Conditions of the Ionized Gas in NGC 4593 from Chandra High‐Energy Grating Spectroscopy

Authors: Barry McKernan, Tahir Yaqoob, Ian M. George, and T. J. Turner

McKernan et al. 2003 The Astrophysical Journal 593 142.

Provider: AAS Journals

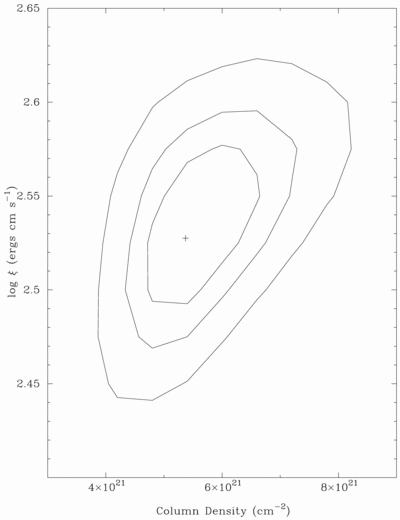

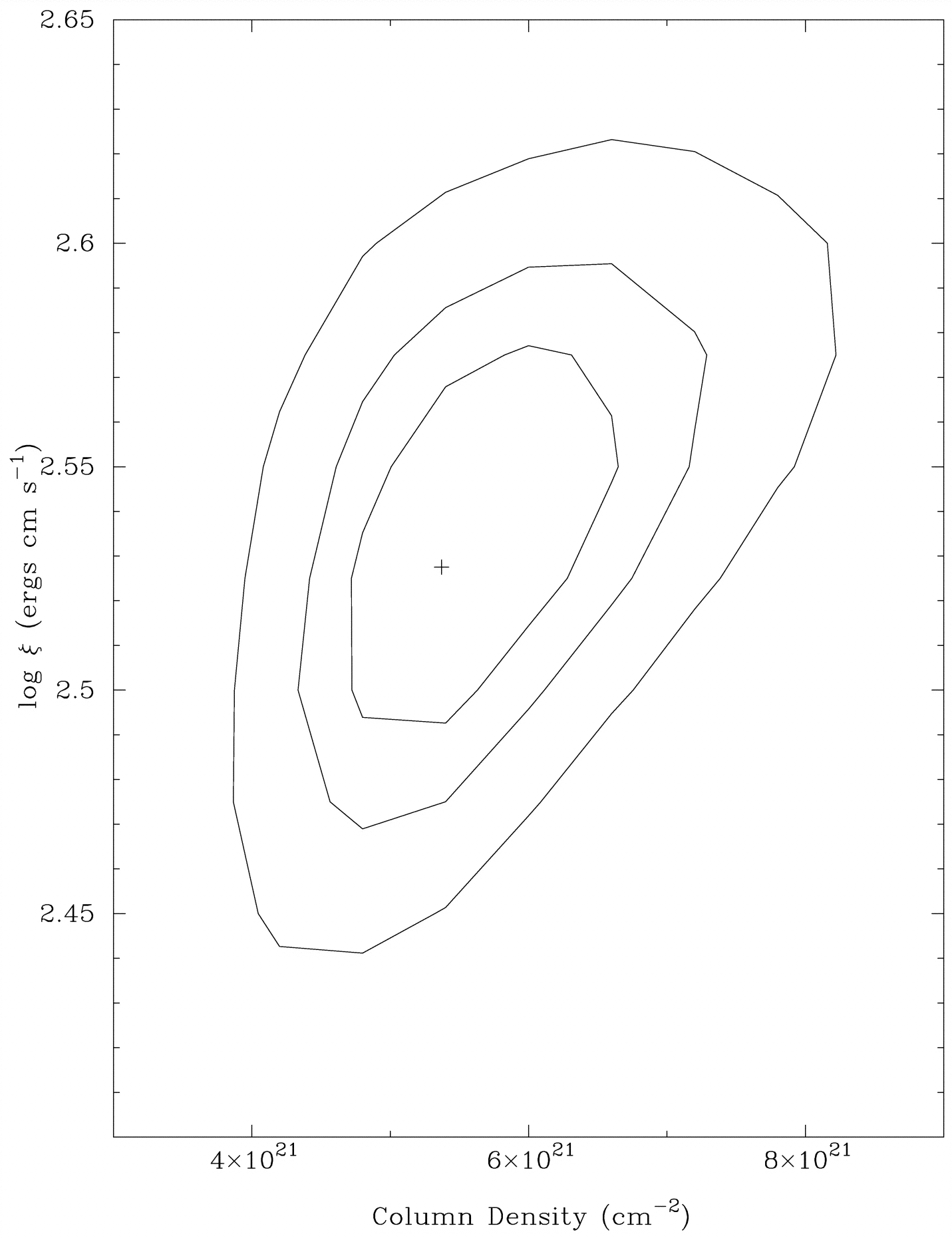

Caption: Fig. 12.

Confidence contours, at 68%, 90%, and 99%, of the logarithm of the ionization parameter (﹩\mathrm{log}\,\xi ﹩) vs. the column density (N_H) around the best‐fitting photoionized absorber corresponding to Fig. 10 (see also Figs. 3 and 11). The HEG and MEG spectra were binned at 0.04 Å. See § 5 for details.
