Fig. 6 from The Kinematics and Physical Conditions of the Ionized Gas in NGC 4593 from Chandra High‐Energy Grating Spectroscopy

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Kinematics and Physical Conditions of the Ionized Gas in NGC 4593 from Chandra High‐Energy Grating Spectroscopy

Authors: Barry McKernan, Tahir Yaqoob, Ian M. George, and T. J. Turner

McKernan et al. 2003 The Astrophysical Journal 593 142.

Provider: AAS Journals

Caption: Fig. 6.

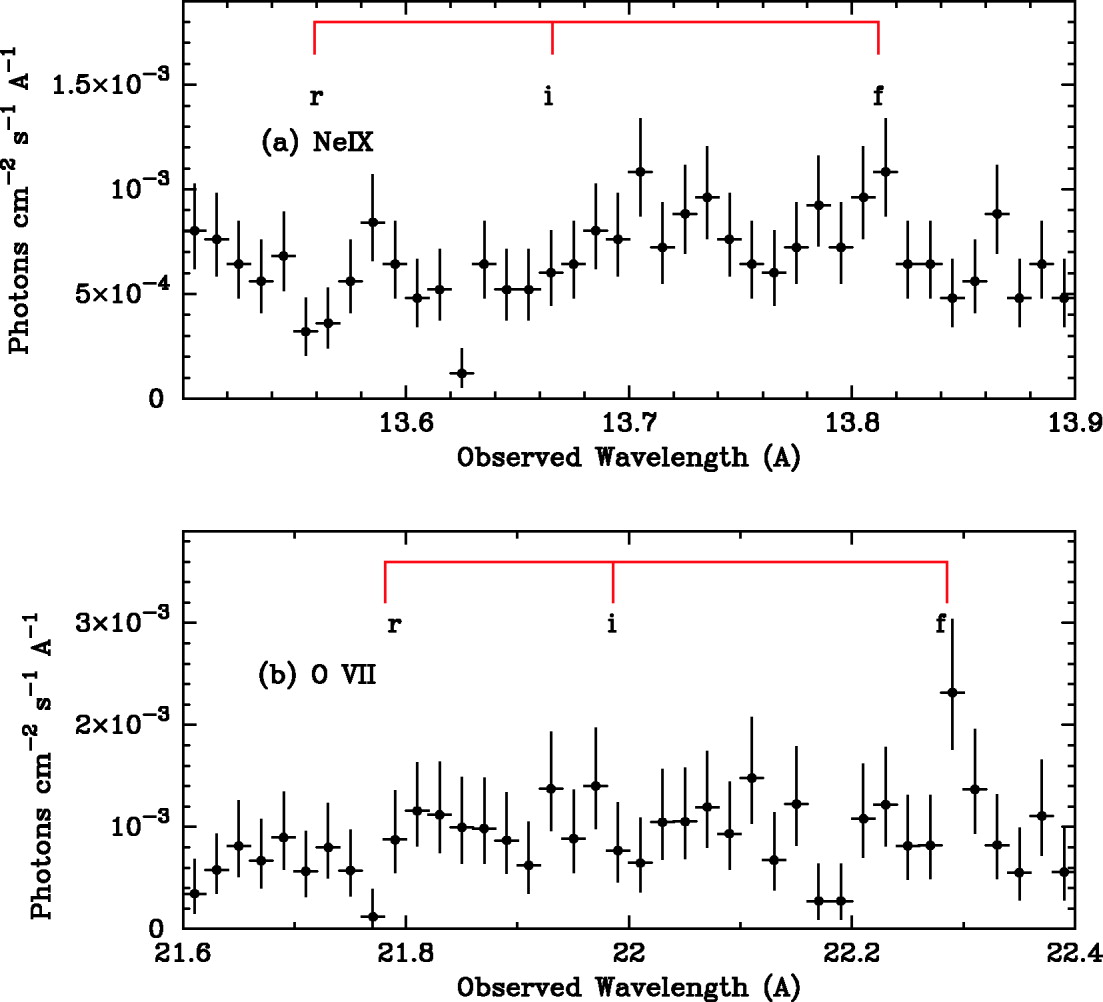

Chandra MEG photon spectrum for NGC 4593 against observed wavelength in the vicinity of the He‐like Ne and O triplets (binned at 0.04 and 0.02 Å, respectively), showing the wavelengths (red) of the respective He‐like resonance, intercombination, and forbidden transitions.
