Simulation-based Assessment of Polarimetric L-band Synthetic Aperture Radar for Shallow Ice Detection on Mars

  • Authors: Ivan Mishev, Étienne Boulais, Isaac B. Smith, Catherine Neish, Michael Daly

Ivan Mishev et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

Caption: Figure 2.

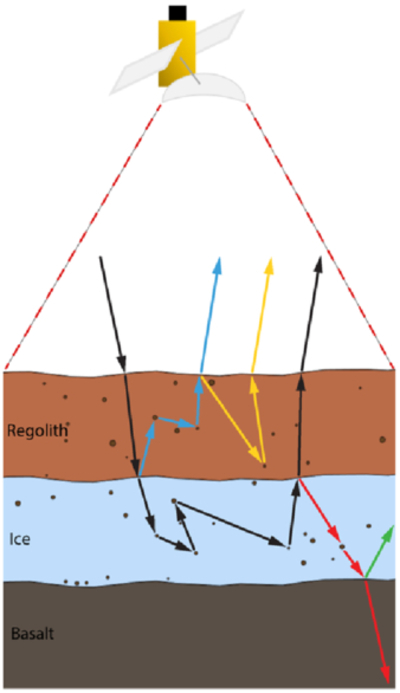

Diagram representing scattering due to interactions with embedded inclusions. Black, blue, and yellow rays illustrate paths that contribute to the backscattered field. Green and red rays do not contribute to the radar return. This image is illustrative only and not indicative of any actual simulation, as scattering events are stochastic, and inclusion locations are not deterministic.
