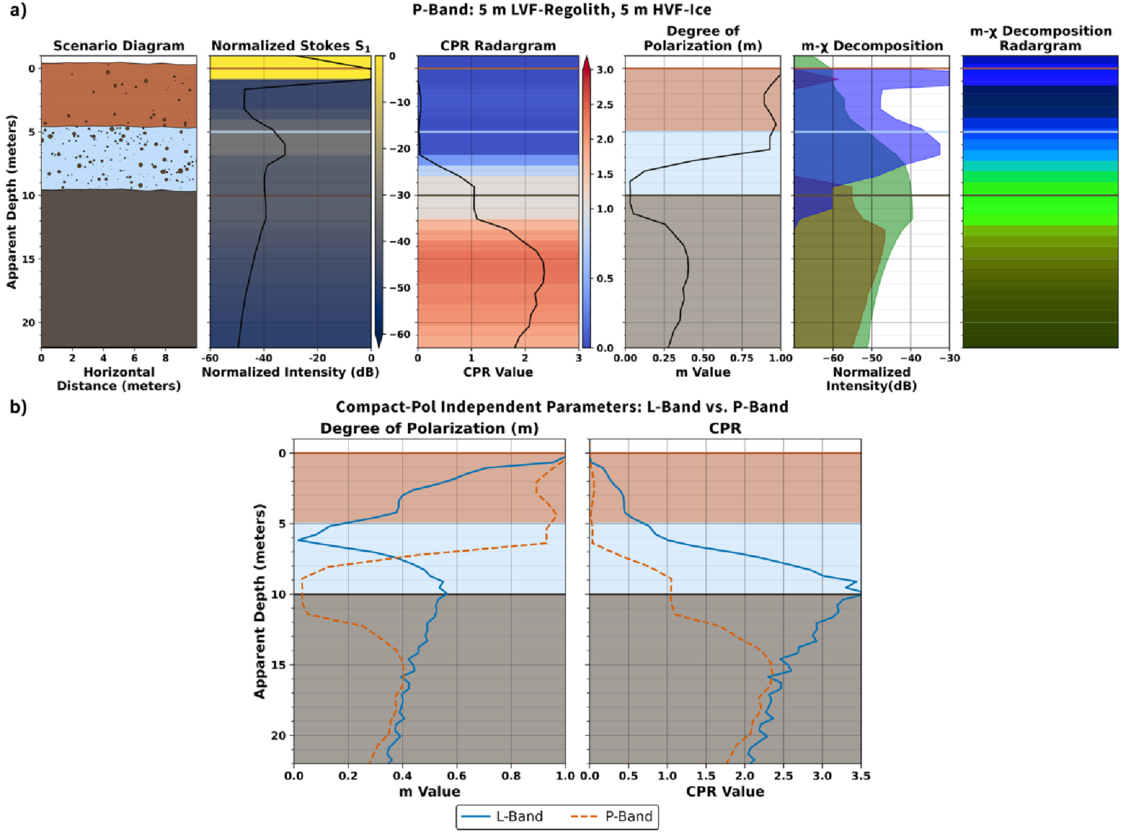

Case 14: P-band 5 m LVF regolith, 5 m HVF ice. Panel (a) from left to right: diagram of scenario showing subsurface profile. Stokes S₁ radargram displaying total return power in dB, with range-averaged response overlaid as a black line. CPR radargram, with range-averaged response overlaid as a black line. Degree of polarization (m) plotted against apparent depth, with background shading denoting regolith, ice, and basalt units. The m-χ decomposition plotted against apparent depth. The m-χ decomposition radargram. Dashed vertical lines in S₁ and m-χ plots at −123 dB indicate the NE-Γ noise floor (SNR = 0 dB). Orange, blue, and brown horizontal lines denote interfaces of regolith, ice, and basalt, respectively. Panel (b) overlays the m and CPR responses of the L-band and P-band cases to compare the development of volumetric scattering and coherent backscatter enhancement.
