Novel Insights into Terrestrial and Extraterrestrial Phenomena Using New Phase Diagrams with Three Pseudosupercritical States, Liquid Boundary, and Dwij Point

Authors: Raad Shahmat Haque, Guo-Xiang Wang, Vish Prasad

Raad Shahmat Haque et al 2026 The Planetary Science Journal 7 .

Provider: AAS Journals

Caption: Figure 4.

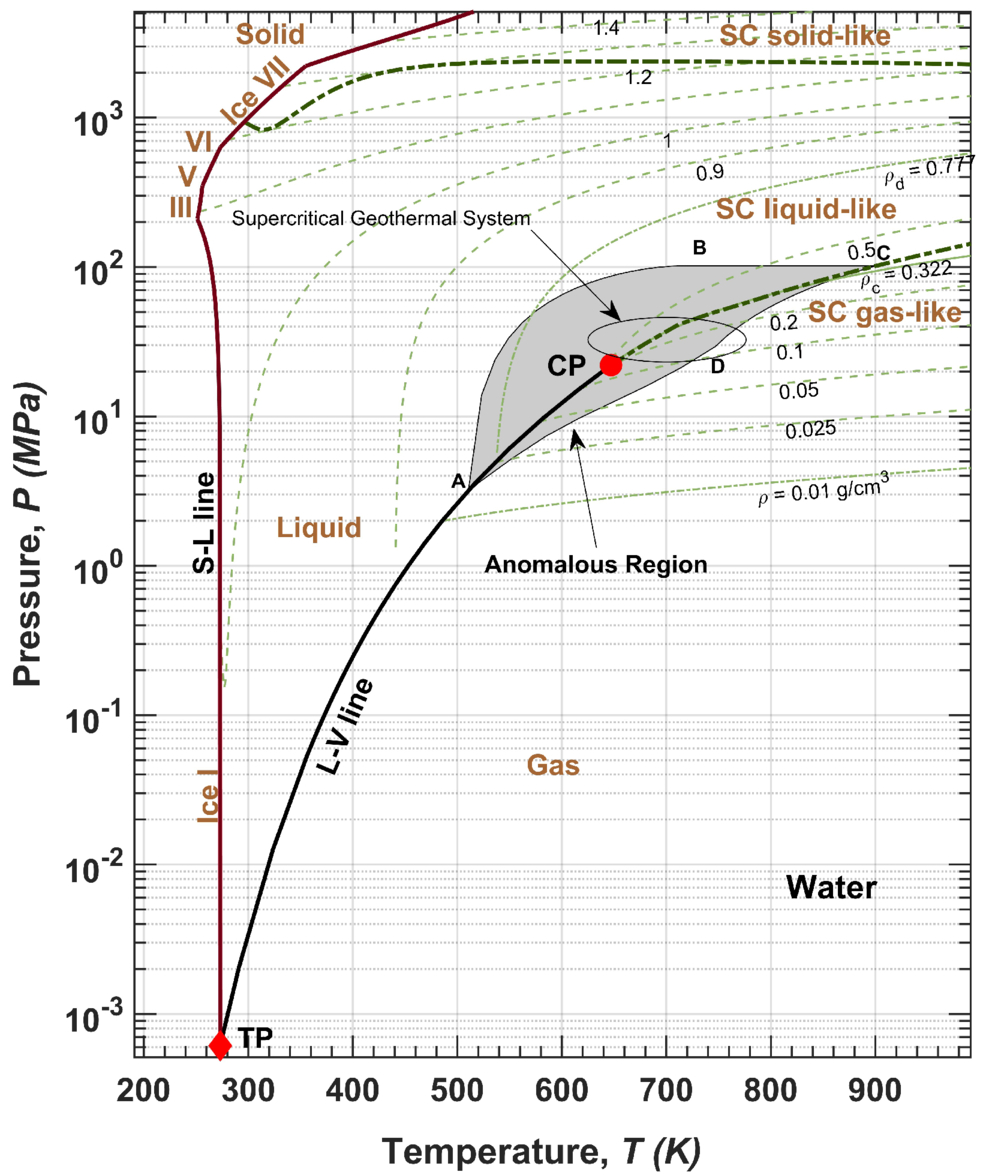

New, water phase diagram with zoomed anomalous region (ABCDA) from G.-X. Wang et al. (2024). The elliptical annotations identify approximate geological P−T ranges corresponding to Supercritical Geothermal Systems.
