Constructing the Earth’s Formation History Using Deep Mantle Noble Gas Reservoirs

  • Authors: Vincent Savignac, Eve J. Lee

Vincent Savignac and Eve J. Lee 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

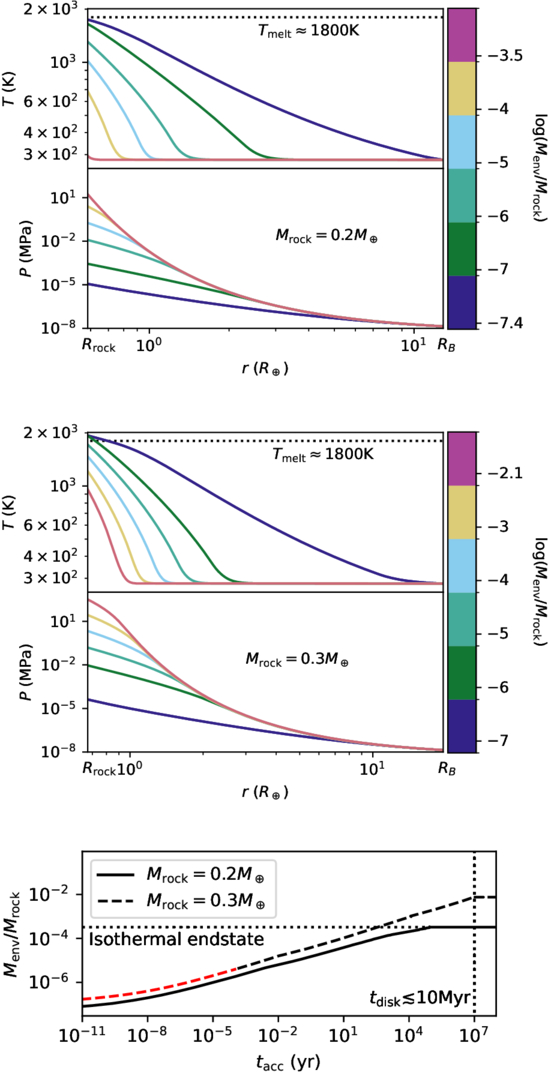

Caption: Figure 2.

Formation of primordial gas envelopes atop rocky interiors embedded at 1 au in the MMSN of C. Hayashi (1981), with the gas density depleted by a factor of fdep = 10−2. Top: radial profiles (solid) of the temperature and pressure (T, P) of the envelope with mass Menv for a rocky interior of mass Mrock = 0.2 M, extending from the radius of the rocky interior Rrock to the Bondi radius RB. Each color represents a hydrostatic snapshot of the envelope for specific values of Menv/Mrock. The dotted line indicates the melting temperature Tmelt ≈ 1800 K of the basaltic mantle. Center: the same as the top, but for Mrock = 0.3 M. Bottom: the envelope-to-rock mass ratio Menv/Mrock over the accretion timescale tacc for Mrock = 0.2 M (solid) and Mrock = 0.3 M (dashed). A dotted vertical line shows the maximal disk lifetime (E. E. Mamajek 2009), and a horizontal dotted line denotes the isothermal end state of the Mrock = 0.2 M case. Values of tacc for which the rocky interior is molten are indicated in red.
