Constructing the Earth’s Formation History Using Deep Mantle Noble Gas Reservoirs

  • Authors: Vincent Savignac, Eve J. Lee

Vincent Savignac and Eve J. Lee 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

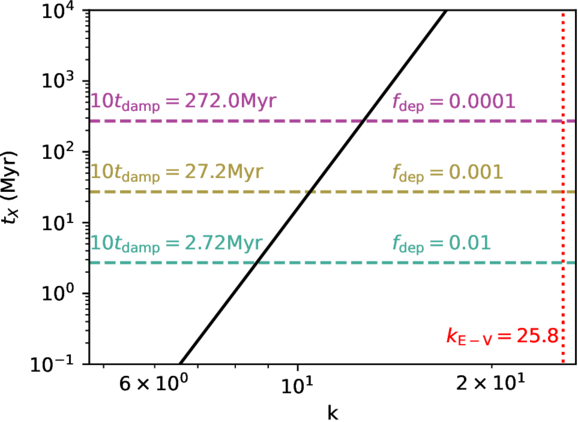

Caption: Figure 6.

Orbit-crossing time tX of 0.3 M embryos assembled at a ∼ 1 au with eccentricity e = 0.001, as a function of orbital spacing k. The eccentricity-damping timescales tdamp of the embryos in a gaseous nebula depleted by factors fdep = [10−2, 10−3, 10−4] are displayed with cyan, yellow, and magenta dashed horizontal lines, respectively. The damping times are multiplied by 10 to assess the merger criterion tX < 10tdamp of J. C. B. Papaloizou & J. D. Larwood (2000). As a reference, the orbital spacing kE−V between the Earth and its nearest neighbor Venus is indicated with a red dotted vertical line.
