Linear Polarization Variations and Circular Polarization Are Common among Airless Bodies

  • Authors: Sloane J. Wiktorowicz, Amanda J. Bayless, Larissa A. Nofi

Sloane J. Wiktorowicz et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

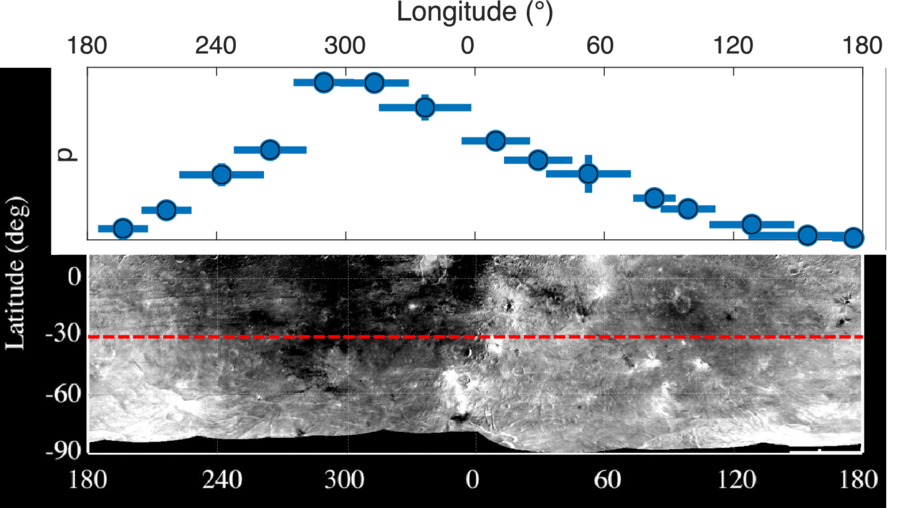

Caption: Figure 7.

Comparison of the Dawn albedo map of (4) Vesta (V. Reddy et al. 2012) with POLISH2 linear polarimetry (Figure 3). As expected from the Umov effect, linear polarization increases as the dark Olbers Regio comes into view (longitude ∼300°) and decreases over the bright regions. Subobserver longitudes for POLISH2 observations are obtained from the JPL Horizons database, and the dashed red line indicates the mean subobserver latitude of −30﹩\mathop{.}\limits^{\unicode{x000b0}}﹩26 ± 0﹩\mathop{.}\limits^{\unicode{x000b0}}﹩31 during POLISH2 observations. The Dawn albedo map is modified from V. Reddy et al. (2012) with permission from AAAS.
