Atomic Iron and Nickel in the Coma of C/1996 B2 (Hyakutake): Production Rates, Emission Mechanisms, and Possible Parents

  • Authors: S. J. Bromley, B. Neff, S. D. Loch, J. P. Marler, J. Országh, K. Venkataramani, D. Bodewits

S. J. Bromley et al 2021 The Planetary Science Journal 2 .

  • Provider: AAS Journals

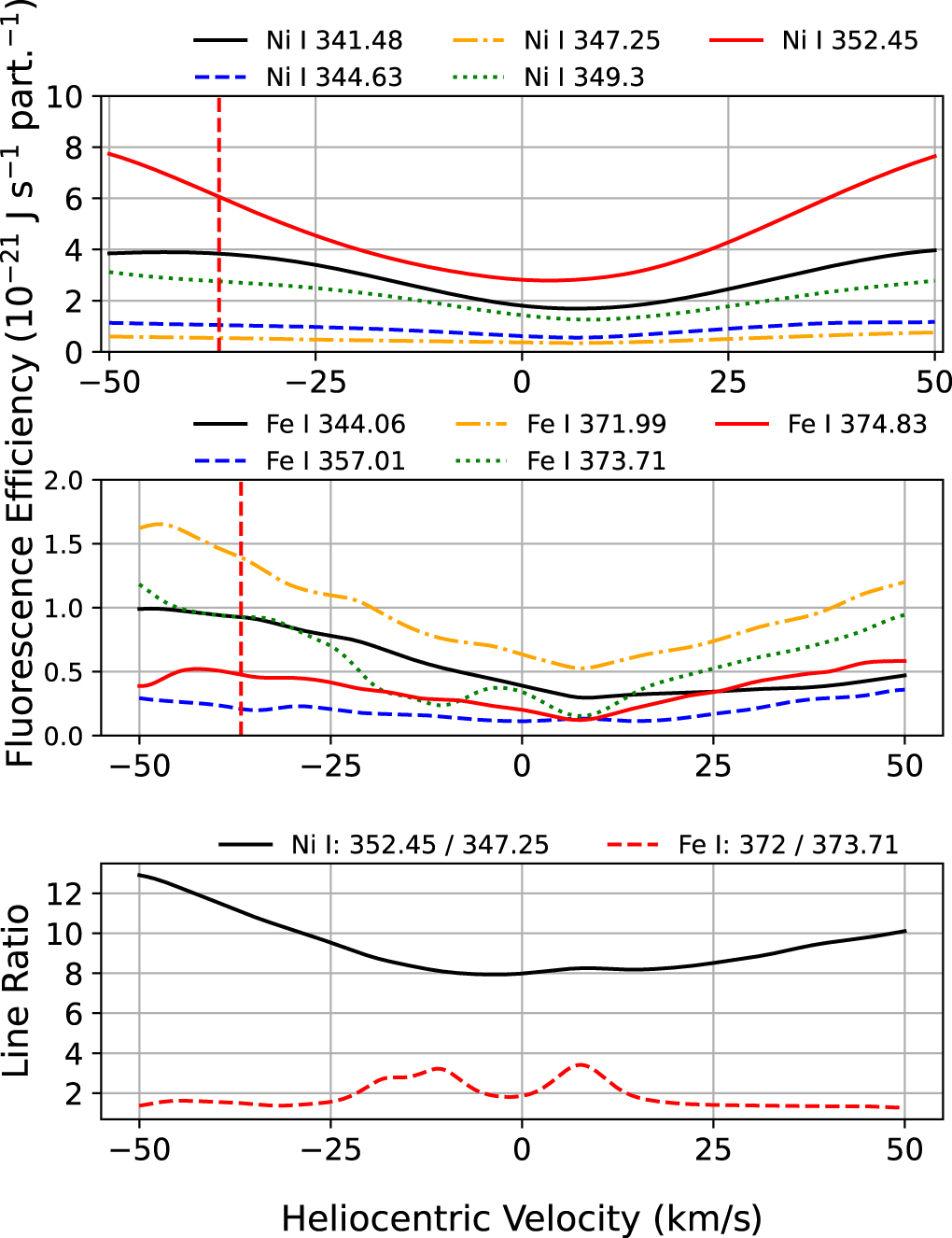

Caption: Figure 10.

Sensitivity of our modeled fluorescence efficiencies for some representative Ni I lines (top) and Fe I lines (middle) to heliocentric velocity, and (bottom) example velocity-sensitive line ratios for Ni I (black) and Fe I (red). Efficiencies were calculated for a heliocentric distance of 1 au. The heliocentric velocity of Hyakutake (−36.7 km s−1) is shown as a vertical dashed line.
