GMRT Survey of Radio Emission from Magnetic Massive Stars. I. Emission from Single Stars at Sub-GHz Frequencies

  • Authors: Ayan Biswas, Gregg A. Wade, Barnali Das, Veronique Petit, Matthew E. Shultz

Ayan Biswas et al 2026 The Astrophysical Journal Supplement Series 285 .

  • Provider: AAS Journals

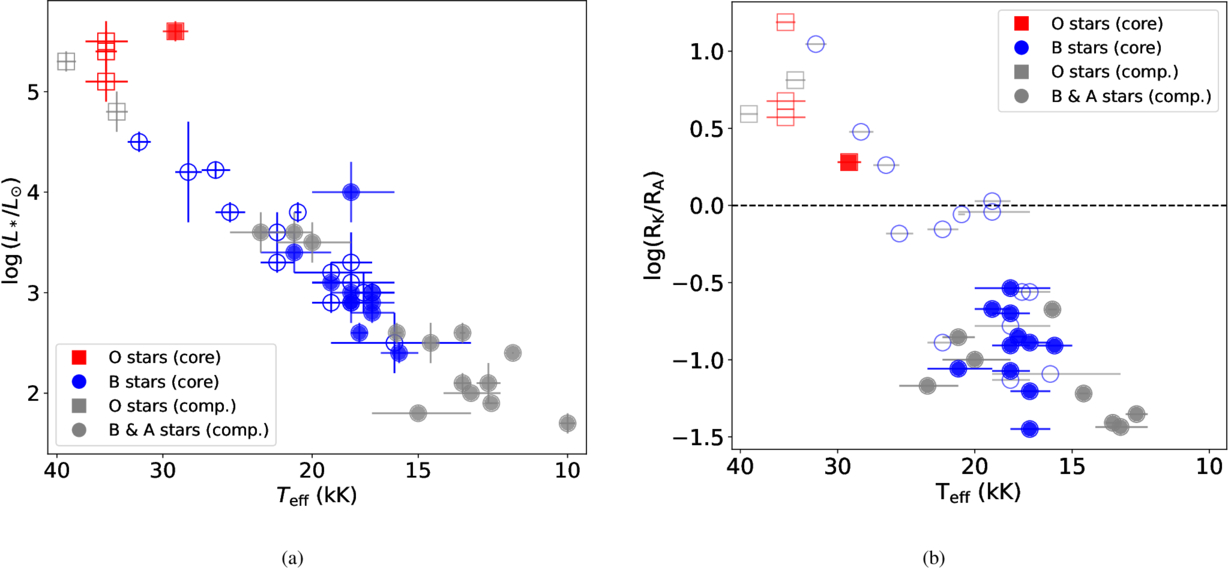

Caption: Figure 2.

(a) H-R diagram showing the survey targets observed with GMRT. (b) Plot of RK/RA vs. Teff, divided into two sections: above the horizontal dashed line showing stars with dynamic magnetospheres (RA < RK), and the bottom part showing stars with a CM (RA > RK). For both panels, red filled squares and blue filled circles represent stars detected with GMRT under projects 27_048 and 28_075, respectively. Gray symbols represent the additional 16 targets observed with GMRT (from P. Chandra et al. 2015) or uGMRT (from B. Das et al. 2022b). Open symbols represent the undetected targets. The sole detected O star near the upper left corner is HD 37742.
