Proper Motion of Dense Circumstellar Knots in the Supernova Remnant Cassiopeia A

  • Authors: Bon-Chul Koo, Sang Bum Ko, Christopher F. McKee, Carl Heiles, Robert A. Fesen, Ji Yeon Seok, Hyun-Jeong Kim, Sung-Chul Yoon

Bon-Chul Koo et al 2025 The Astrophysical Journal Supplement Series 280 .

  • Provider: AAS Journals

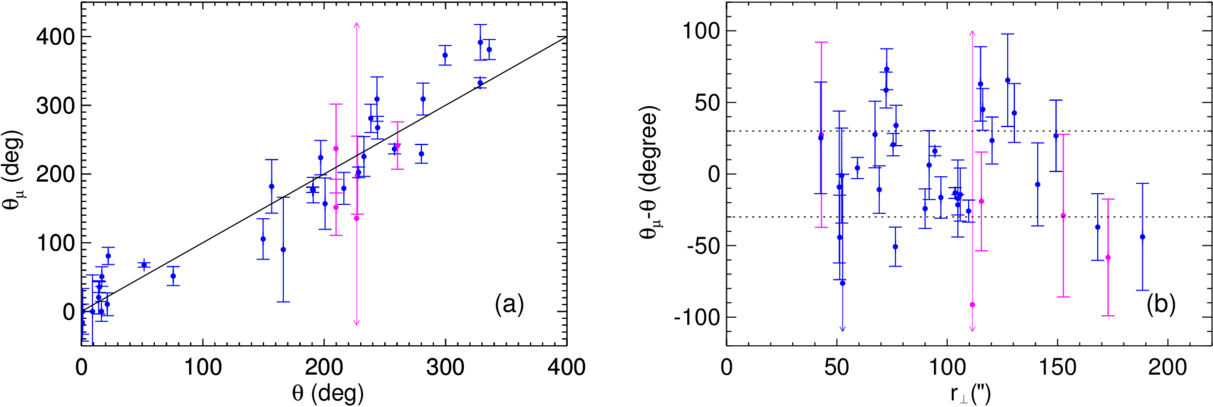

Caption: Figure 4.

(a) Proper-motion angle (θμ) vs. P.A. angle of QSFs (θ). The solid line indicates θμ= θ. (b) The difference θμ − θ vs. the projected distance of QSFs from the explosion center. The dotted lines indicate θμ − θ  = ​​​​±30°. Blue symbols indicate Group 1 QSFs, while magenta symbols represent Group 2 QSFs. The error bar with an arrowhead indicates continuation beyond the plotted range for a data point with an uncertainty exceeding the axis limits.
