A Comprehensive Comparison of Various Galactic Cosmic-Ray Models to the State-of-the-art Particle and Radiation Measurements

  • Authors: Weihao Liu, Jingnan Guo, Yubao Wang, Tony C. Slaba

Weihao Liu et al 2024 The Astrophysical Journal Supplement Series 271 .

  • Provider: AAS Journals

Caption: Figure 10.

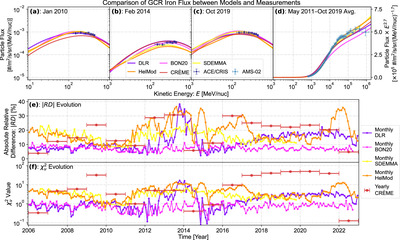

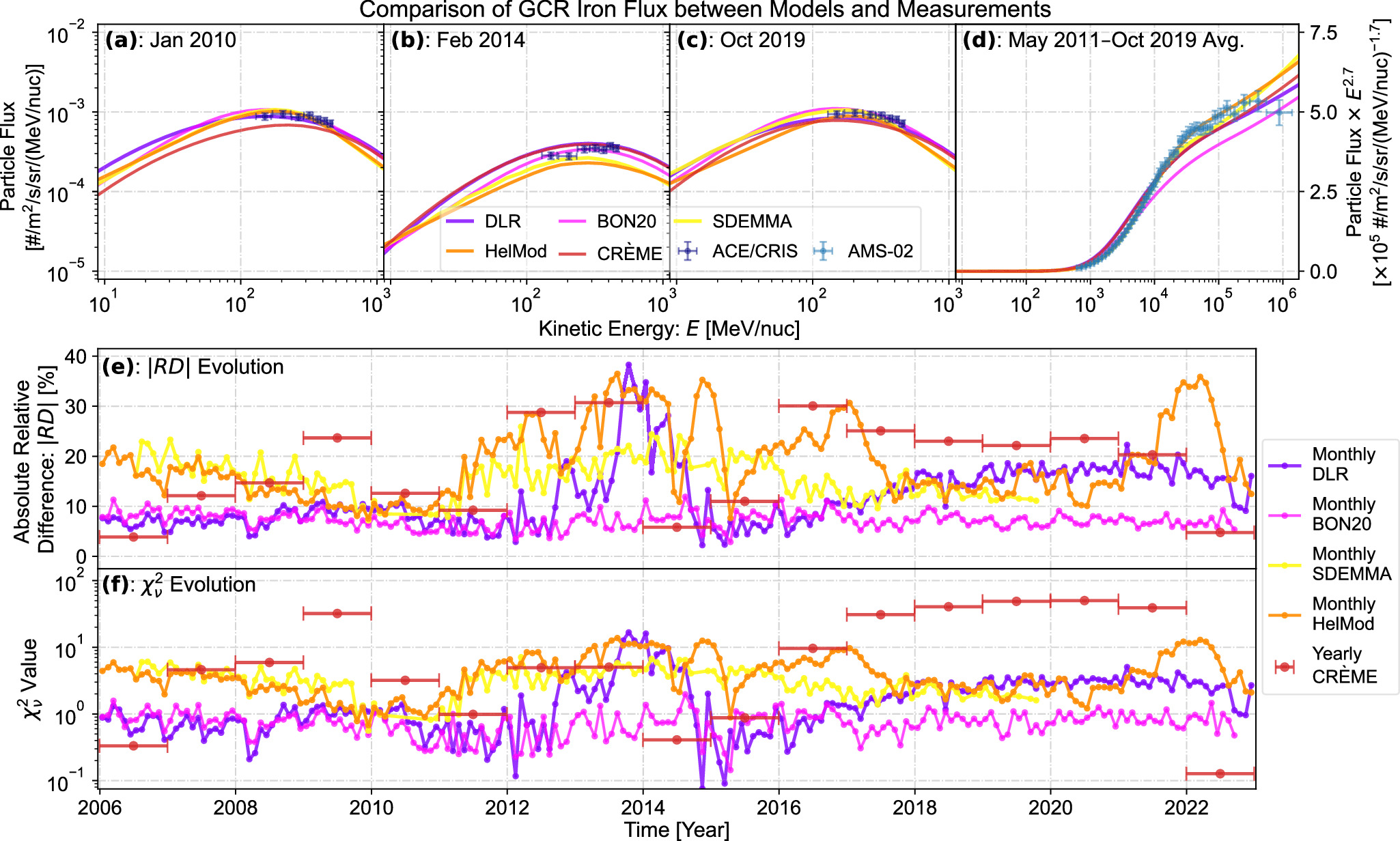

Comparison of the GCR iron flux between models and measurements: (a) 2010 January, (b) 2014 February, and (c) 2019 October, compared to the ACE/CRIS measurements (deep-blue scattered points), and (d) 8.5 yr averaged iron flux multiplied by E 2.7, compared to the AMS-02 measurements (light-blue scattered points). In each of these four panels, the purple, magenta, yellow, orange, and red curves denote the iron flux of the DLR, BON20, SDEMMA, HelMod, and CRÈME models, respectively. Two additional panels provide the statistical evolution of the flux compared to the ACE/CRIS measurements: (d) absolute relative difference (﹩\left|{RD}\right|﹩) between the model predictions and measurements and (e) ﹩{\chi }_{\nu }^{2}﹩ value.
