Observational and Dynamical Constraints on an Unseen Outer Perturber in the GJ 436 Hot Neptune System

  • Authors: Haedam Im, 해담 임, Tiger Lu, 均 陆, Malena Rice, Quang H. Tran, Gongjie Li, Smadar Naoz

Haedam Im et al 2026 The Astrophysical Journal 1003 .

  • Provider: AAS Journals

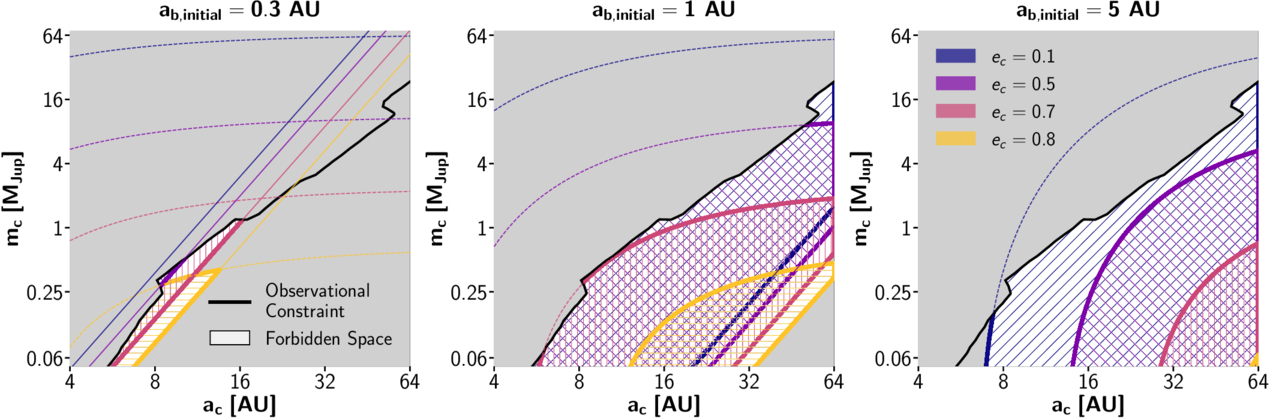

Caption: Figure 3.

Analytic constraints in mcac space for three initial semimajor axes ab = 0.3, 1, and 5 au. Light gray shading with no overlaid, colored hatch pattern indicates the observationally (2σ) and dynamically forbidden region. The solid black line delineates the observationally forbidden region. Each color corresponds to a different outer companion eccentricity: ec = 0.1 (dark purple), ec = 0.5 (violet), ec = 0.7 (pink), and ec = 0.8 (orange). The colored solid lines delineate where ﹩{t}_{\mathrm{GR}}/{t}_{\mathrm{quad}}=1﹩, above which ZLK precession dominates over GR precession. The dashed curves indicate Hill stability boundaries with a separation criterion Δ = 5, below which the system remains dynamically stable. Colored regions represent the parameter space where the outer perturber satisfies all three criteria: (1) is dynamically stable (below the dashed curve), (2) ZLK precession dominates over GR analytically (above the solid line), and (3) is observationally allowed.
