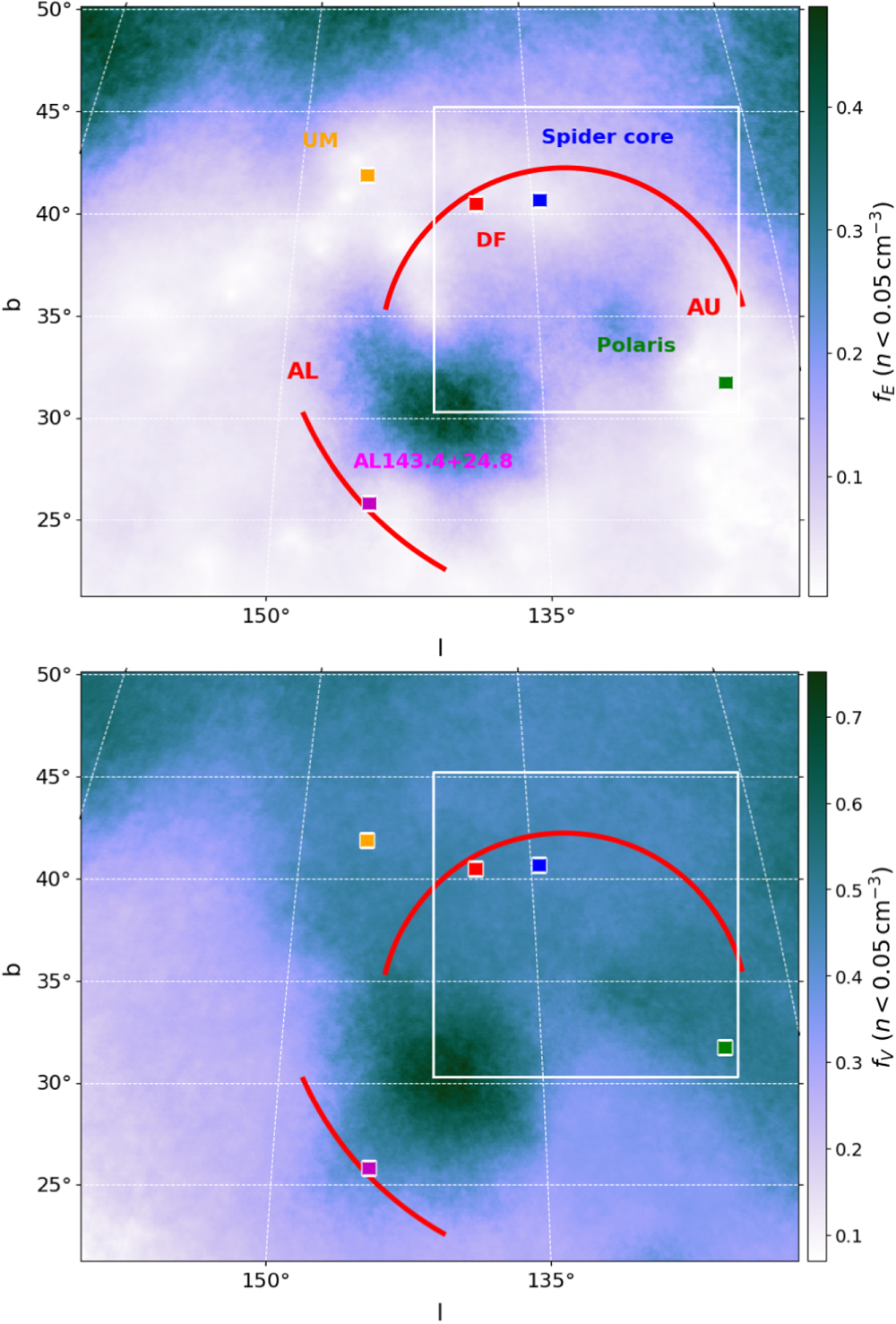

Fraction of total integrated s x of gas with n H < 0.05 cm−3 (top). Volume filling factor occupied by gas with n H < 0.05 cm−3 (bottom). The projection and the annotations are as in Figures 1 and 3. Note that the color scale in the two panels corresponds to different ranges.
