No Time for Dead Time: Timing Analysis of Bright Black Hole Binaries with NuSTAR

Authors: Matteo Bachetti, Fiona A. Harrison, Rick Cook, John Tomsick, Christian Schmid, Brian W. Grefenstette, Didier Barret, Steven E. Boggs, Finn E. Christensen, William W. Craig, Andrew C. Fabian, Felix Fürst, Poshak Gandhi, Charles J. Hailey, Erin Kara, Thomas J. Maccarone, Jon M. Miller, Katja Pottschmidt, Daniel Stern, Phil Uttley, Dominic J. Walton, Jörn Wilms, and William W. Zhang

Bachetti et al. 2015 The Astrophysical Journal 800 109.

Provider: AAS Journals

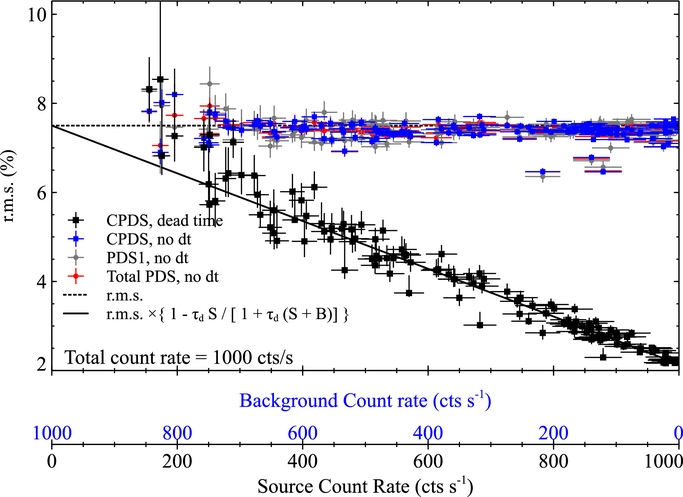

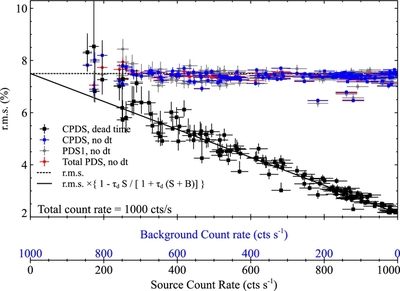

Caption: Figure 5.

Dependence of the rms on the relative contribution of the source in a given energy range to the total count rate. The 132 simulations that compose this plot show how the rms drop is stronger if the source signal dominates the total signal, since the source signal contributes more to the total dead time. The solid black line shows Equation (6). It is not a fit.
