The TOP-SCOPE Survey of Planck Galactic Cold Clumps: Molecular Gas Properties

  • Authors: Yang Yuebin, Jarken Esimbek, Tie Liu, Willem Baan, Xunchuan Liu, Kee-Tae Kim, Gang Wu, Xindi Tang, Jianjun Zhou, Dalei Li, Yuxin He, Sung-Ju Kang, Yingxiu Ma, Dongdong Zhou

Yang Yuebin et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

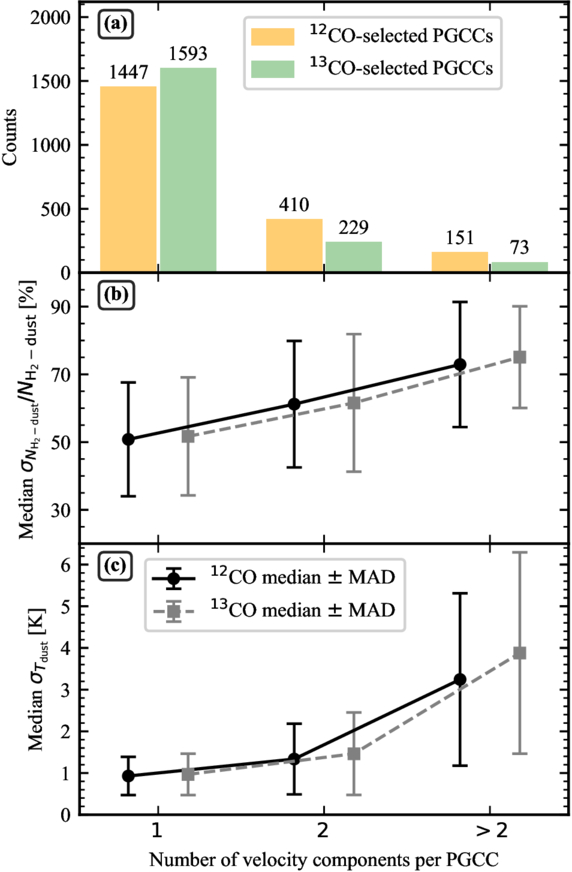

Caption: Figure 10.

Catalog dust-parameter uncertainties for different CO velocity-component multiplicity bins. Panel (a) gives the numbers of PGCCs with one, two, and more than two detected 12CO or 13CO components. Panels (b) and (c) show the median relative uncertainty ﹩{\sigma }_{{N}_{{{\rm{H}}}_{2}-{\rm{dust}}}}/{N}_{{{\rm{H}}}_{2}-{\rm{dust}}}﹩ and the median dust-temperature uncertainty ﹩{\sigma }_{{T}_{{\rm{dust}}}}﹩ in the same multiplicity bins. Black circles and gray squares represent the 12CO- and 13CO-selected samples. Error bars denote median absolute deviations.
