A Dark, Bare Rock for TOI-1685 b from a JWST NIRSpec G395H Phase Curve

  • Authors: Rafael Luque, Brandon Park Coy, Qiao Xue, Adina D. Feinstein, Eva-Maria Ahrer, Quentin Changeat, Michael Zhang, Sarah E. Moran, Jacob L. Bean, Edwin Kite, Megan Weiner Mansfield, Enric Pallé

Rafael Luque et al 2025 The Astronomical Journal 170 .

  • Provider: AAS Journals

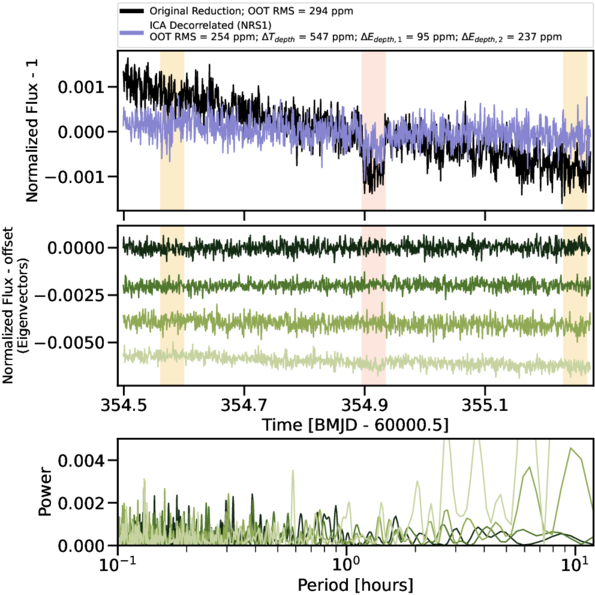

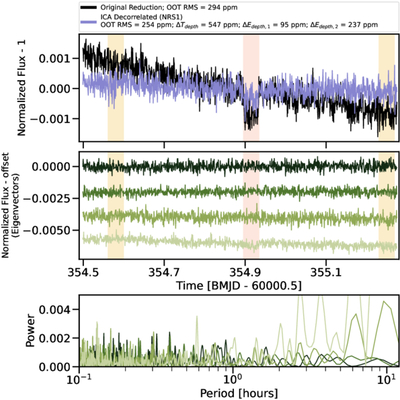

Caption: Figure 8.

Same as Figure 7, but for NRS1. While the ICA eigenvectors are able to successfully remove the linear trend seen in NRS1, nearly every eigenvector showed some residual signal around the transit. This made it challenging to remove the instrumental systematics through this technique without affecting the transit depth, as highlighted here. The eigenvectors for the PCA behaved similarly.
