Reaction between Hydrogen and Ferrous/Ferric Oxides at High Pressures and High Temperatures—Implications for Sub-Neptunes and Super-Earths

  • Authors: H. W. Horn, V. Prakapenka, S. Chariton, S. Speziale, S.-H. Shim

H. W. Horn et al 2023 The Planetary Science Journal 4 .

  • Provider: AAS Journals

Caption: Figure A2.

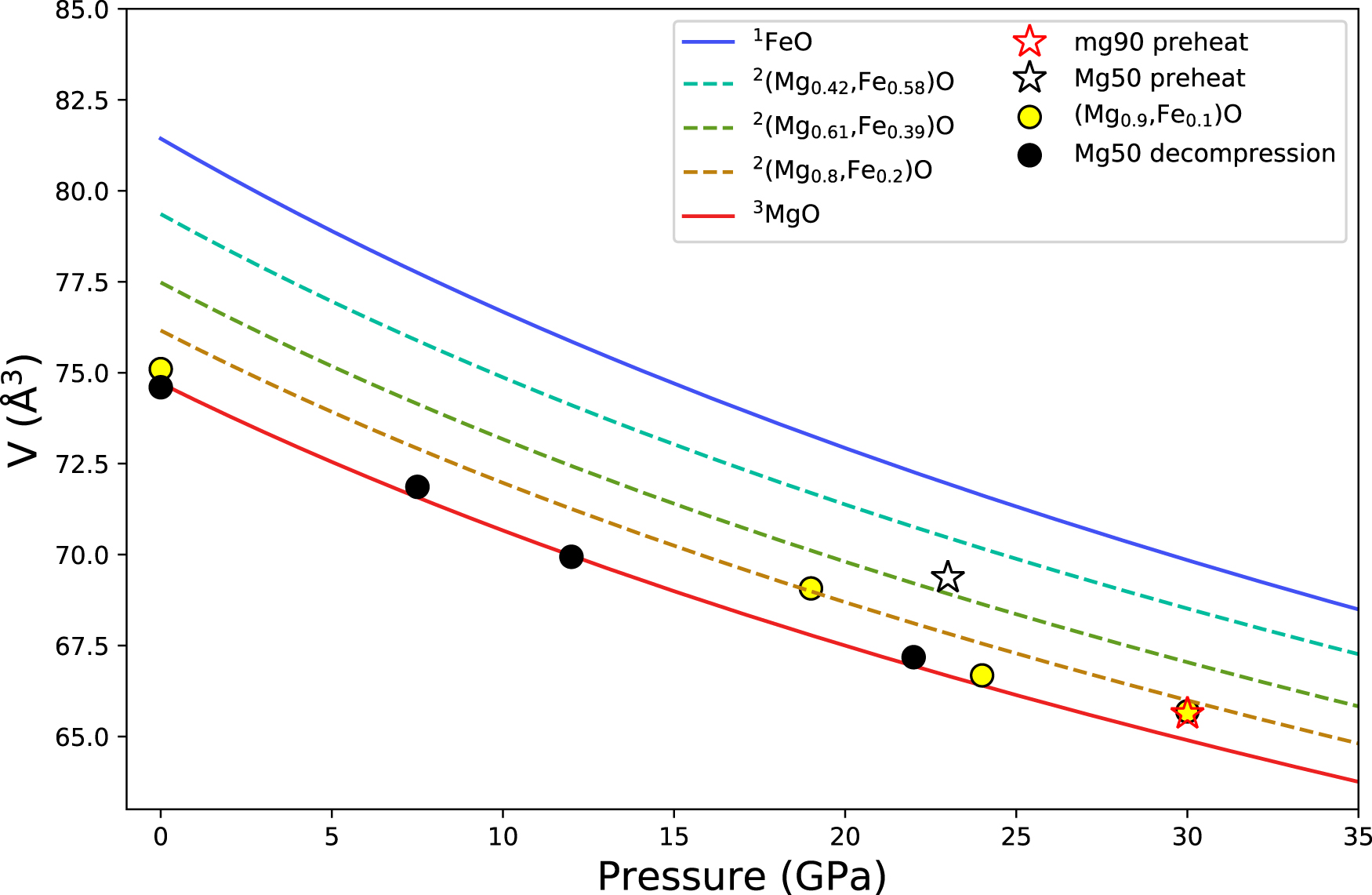

The unit-cell volume of ferropericlase before (stars) and after (circles) heating and subsequent decompression to 1 bar for heating runs Mg50-2 (black) and Mg90-1 (yellow). Also shown are compositional curves for the pressure–volume relationship of (Mg,Fe)O with various Fe contents: 1FeO from Fischer et al. (2011), 2(Mg,Fe)O from Fei et al. (2007), and 3MgO from Speziale et al. (2001).
