Unveiling the True Nature of Plasma Dynamics from the Reference Frame of a Superpenumbral Fibril

  • Authors: W. Bate, D. B. Jess, S. D. T. Grant, A. Hillier, S. J. Skirvin, T. Van Doorsselaere, S. Jafarzadeh, T. Wiegelmann, T. Duckenfield, C. Beck, T. Moore, M. Stangalini, P. H. Keys, D. J. Christian

W. Bate et al 2024 The Astrophysical Journal 970 .

  • Provider: AAS Journals

Caption: Figure 5.

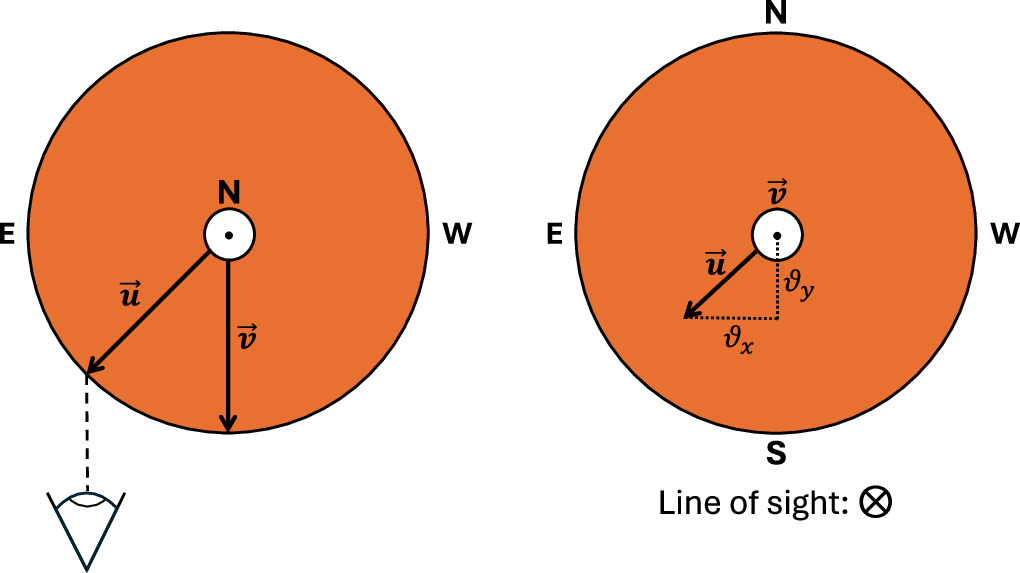

A schematic diagram to indicate the directions of the vectors ﹩{\boldsymbol{u}}﹩ and ﹩{\boldsymbol{v}}﹩, described by Equations (4) and (5), respectively. The left panel shows a top-down view of the Sun and the right panel shows the view from the direction of the Earth. Here, ⊙ represents a vector pointing out of the page, and ⨂ represents a vector pointing into the page.
