Figure 25 from Physical Constraints on the Extended Interstellar Medium of the z = 6.42 Quasar J1148+5251: [C II]158 μm, [N II]205 μm, and [O I]146 μm Observations

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Physical Constraints on the Extended Interstellar Medium of the z = 6.42 Quasar J1148+5251: [C II]_{158 μm}, [N II]_{205 μm}, and [O I]_{146 μm} Observations

Authors: Romain A. Meyer, Fabian Walter, Claudia Cicone, Pierre Cox, Roberto Decarli, Roberto Neri, Mladen Novak, Antonio Pensabene, Dominik Riechers, and Axel Weiss

2022 The Astrophysical Journal 927 152.

Provider: AAS Journals

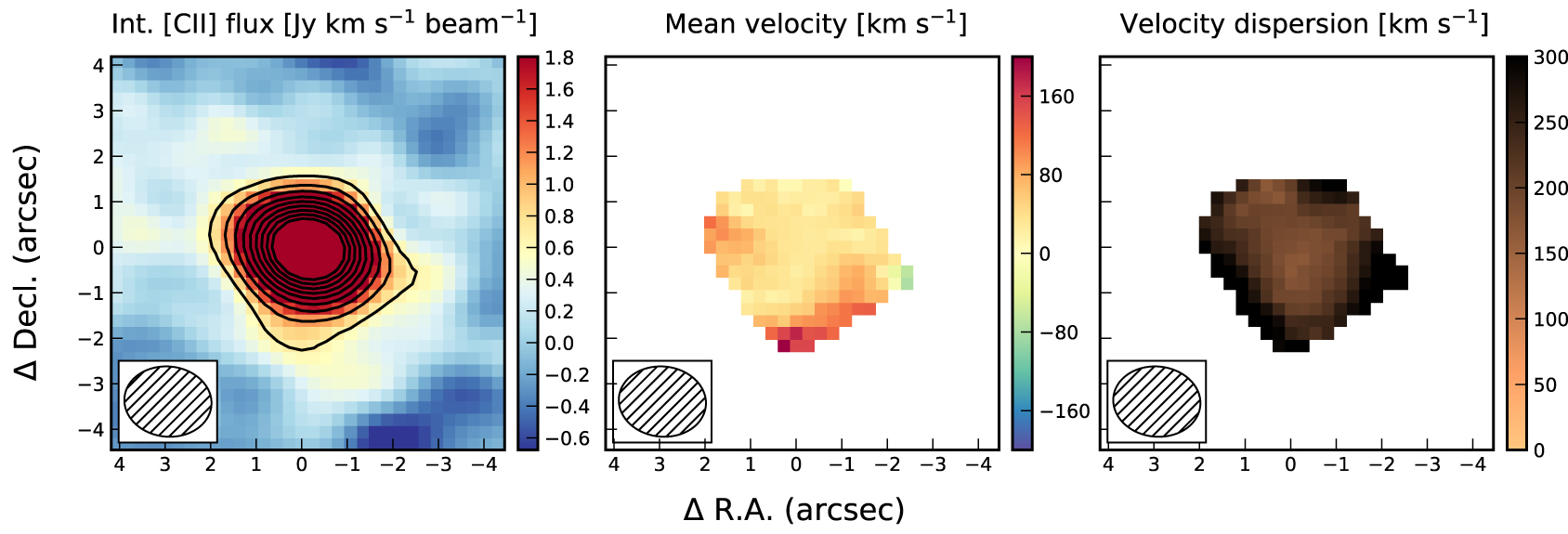

Caption: Figure 25.

Moment maps of the [C II]_{158 μm} emission. The integrated velocity and velocity dispersion are only shown in pixels at the 3σ level. The absence of any velocity structure is expected, given that the 3σ detected area covers only ∼4 beams.
