Physical Constraints on the Extended Interstellar Medium of the z = 6.42 Quasar J1148+5251: [C II]_{158 μm}, [N II]_{205 μm}, and [O I]_{146 μm} Observations

Authors: Romain A. Meyer, Fabian Walter, Claudia Cicone, Pierre Cox, Roberto Decarli, Roberto Neri, Mladen Novak, Antonio Pensabene, Dominik Riechers, and Axel Weiss

2022 The Astrophysical Journal 927 152.

Provider: AAS Journals

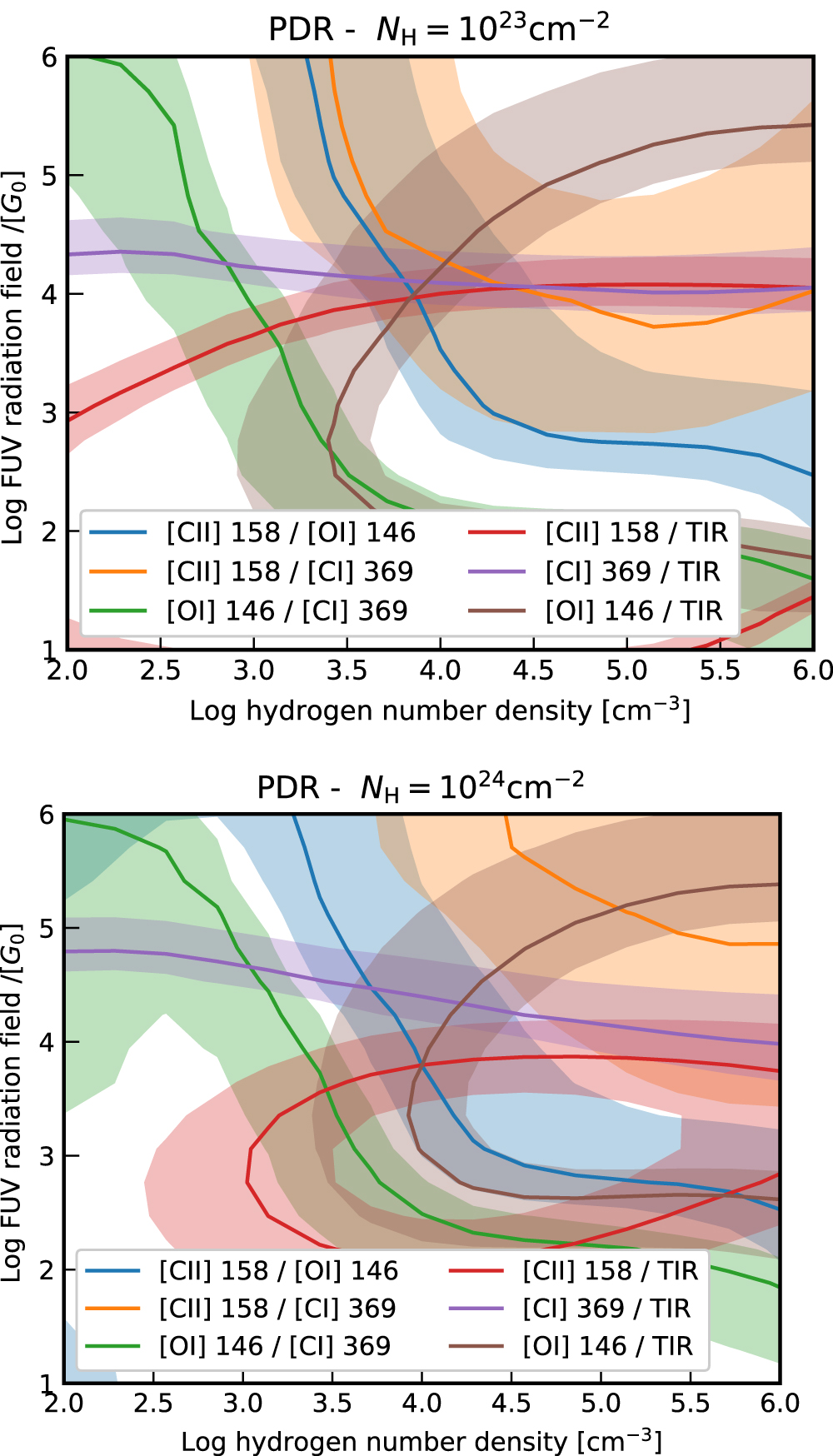

Caption: Figure 11.

ISM constraints from the FSL ratios predicted by CLOUDY for PDRs with hydrogen column densities N_H/[cm⁻²] = 10²³ (top panel) and N_H/[cm⁻²] = 10²⁴ (lower panel). The observed ratio constraints from the aperture-integrated fluxes are plotted in solid lines, and the ±1σ values in the shaded areas of the same color.
