Self-consistent Ring Model in Protoplanetary Disks: Temperature Dips and Substructure Formation

  • Authors: Shangjia Zhang, Xiao Hu, Zhaohuan Zhu, and Jaehan Bae

2021 The Astrophysical Journal 923 70.

  • Provider: AAS Journals

Caption: Figure 8.

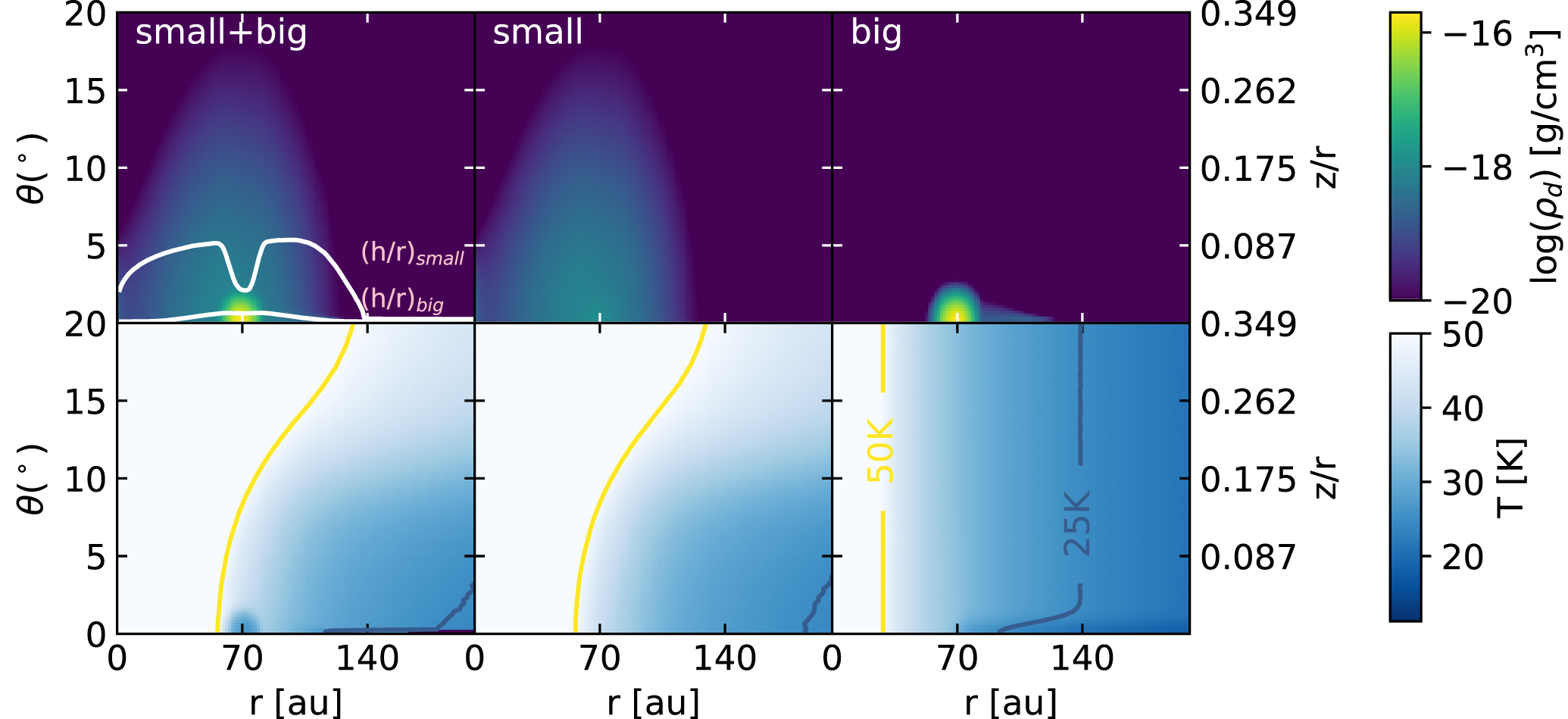

Left: 2D density (top) and temperature (bottom) distributions of model Σpeak = 2 × 10−4 g cm−2, α = 0.01, σ = 20 au and Σfloor/Σpeak = 0.001. Middle: the density and temperature distributions with only small grains included. Right: with only big grains included. The white curves in top panels are the one scale-height contours of small (upper one) and big (lower one) grains.
