Figure 7 from Self-consistent Ring Model in Protoplanetary Disks: Temperature Dips and Substructure Formation

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Self-consistent Ring Model in Protoplanetary Disks: Temperature Dips and Substructure Formation

Authors: Shangjia Zhang, Xiao Hu, Zhaohuan Zhu, and Jaehan Bae

2021 The Astrophysical Journal 923 70.

Provider: AAS Journals

Caption: Figure 7.

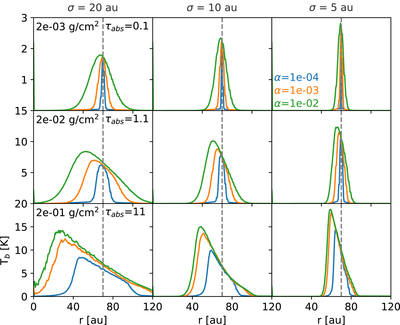

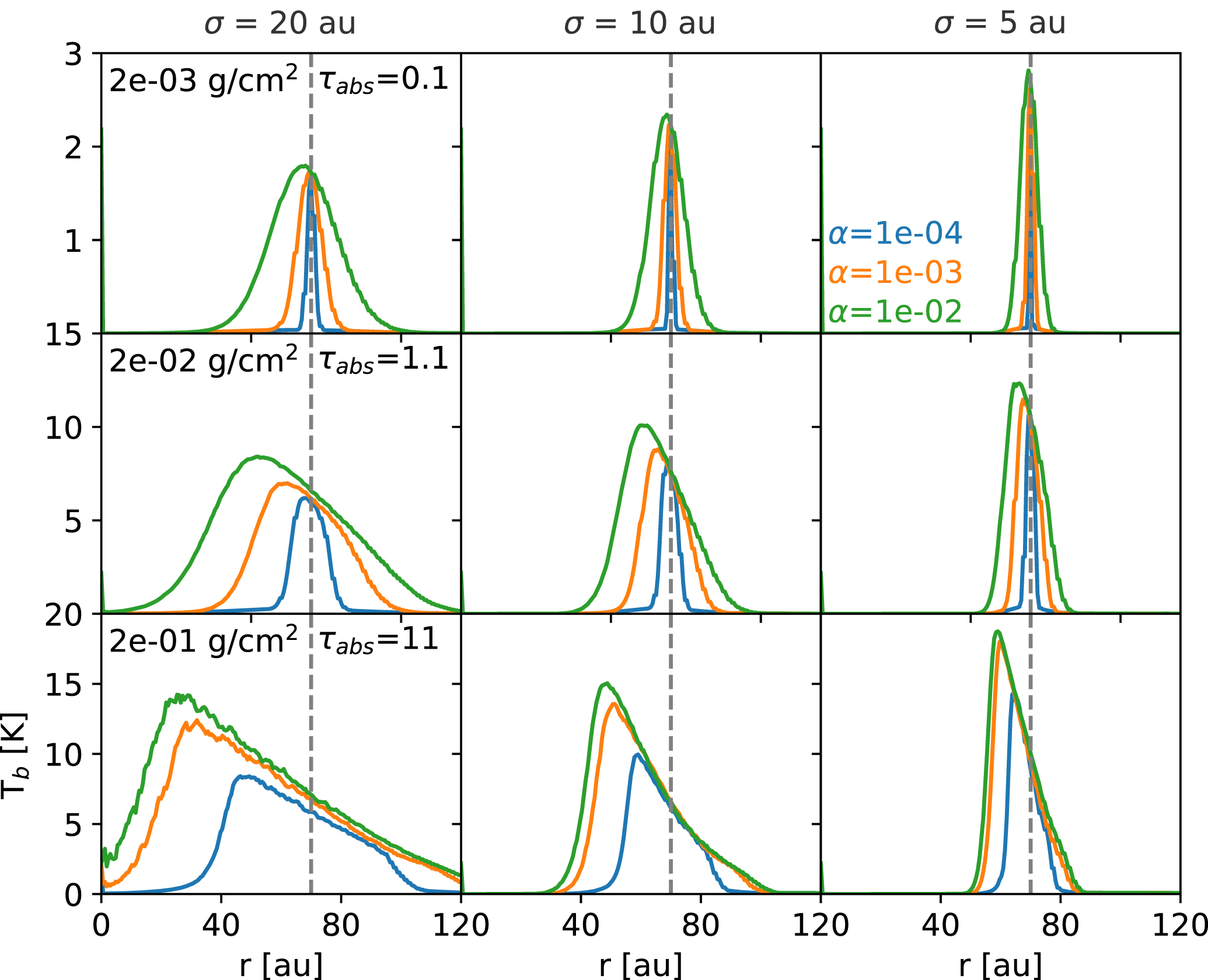

The radial profiles at 0.87 mm for two-population models in units of brightness temperature as the same layout as Figure 6. Total absorption optical depths of Guassian’s peaks (including both species) are marked on left panels. The ring’s peaks at 70 au are marked as vertical dashed lines.
