Self-consistent Ring Model in Protoplanetary Disks: Temperature Dips and Substructure Formation

Authors: Shangjia Zhang, Xiao Hu, Zhaohuan Zhu, and Jaehan Bae

2021 The Astrophysical Journal 923 70.

Provider: AAS Journals

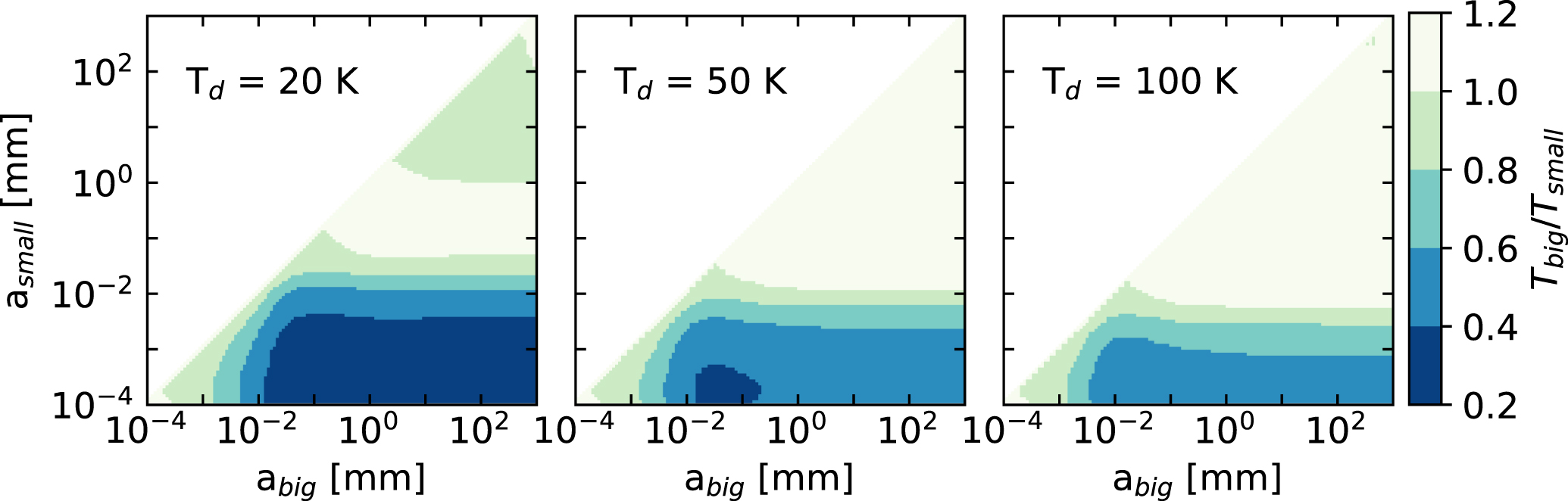

Caption: Figure 2.

The equilibrium temperature ratio between the single-sized big species and the small species calculated using DSHARP opacity. The stellar temperature is 6000 K. From left to right, the disk temperatures T_d are 20, 50, and 100 K.
