Parabolic Jets from the Spinning Black Hole in M87

Authors: Masanori Nakamura, Keiichi Asada, Kazuhiro Hada, Hung-Yi Pu, Scott Noble, Chihyin Tseng, Kenji Toma, Motoki Kino, Hiroshi Nagai, Kazuya Takahashi, Juan-Carlos Algaba, Monica Orienti, Kazunori Akiyama, Akihiro Doi, Gabriele Giovannini, Marcello Giroletti, Mareki Honma, Shoko Koyama, Rocco Lico, Kotaro Niinuma, and Fumie Tazaki

2018 The Astrophysical Journal 868 146.

Provider: AAS Journals

Caption: Figure 13.

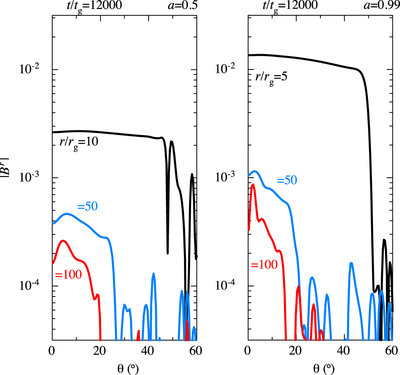

θ cross section at r/r_g = 10 (black, left) or 5 (black, right), 50 (blue), and 100 (red) showing the absolute value of the radial magnetic field ﹩| {B}^{r}| ﹩ at t/t_g = 12000; a = 0.5 (left) and a = 0.99 (right).
