The Bolocam Galactic Plane Survey. XII. Distance Catalog Expansion Using Kinematic Isolation of Dense Molecular Cloud Structures with 13CO(1-0)

  • Authors: Timothy P. Ellsworth-Bowers, Erik Rosolowsky, Jason Glenn, Adam Ginsburg, Neal J. Evans II, Cara Battersby, Yancy L. Shirley, and Brian Svoboda

Ellsworth-Bowers et al. 2015 The Astrophysical Journal 799 29.

  • Provider: AAS Journals

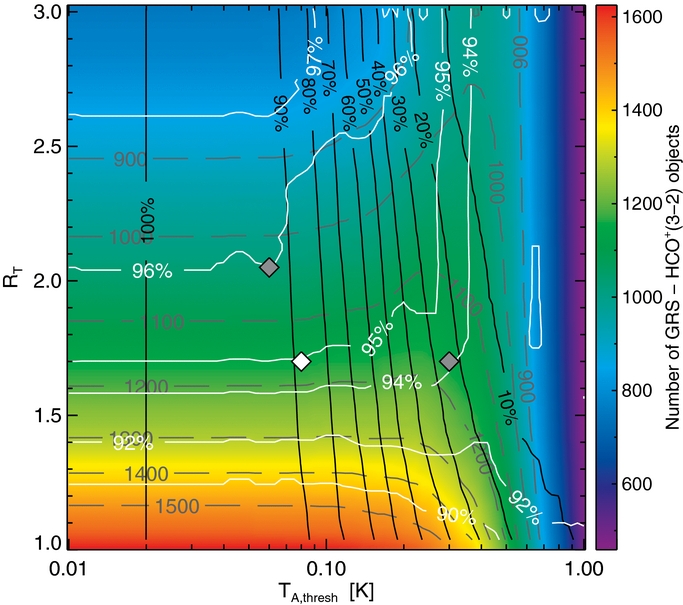

Caption: Figure 5.

Optimization of the TA, thresh for detection and RT limit for multiply peaked spectra. Background color scale and gray dashed contours denote the number of BGPS V2 objects that possess both HCO(3–2) and morphologically extracted 13CO velocities (Ncomp). White contours mark the fraction of Ncomp whose vLSR from the two sources agree to better than 5 km s−1. Black contours show the fraction of Ncomp whose morphologically extracted spectrum contains more than one peak above TA, thresh. The white diamond indicates the chosen values of TA, thresh and RT while the gray diamonds are discarded choices (see text).
