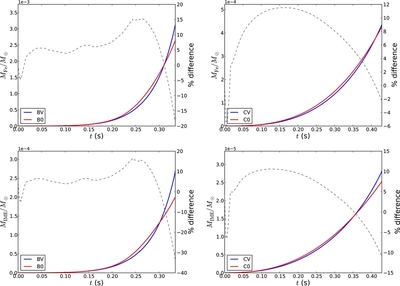

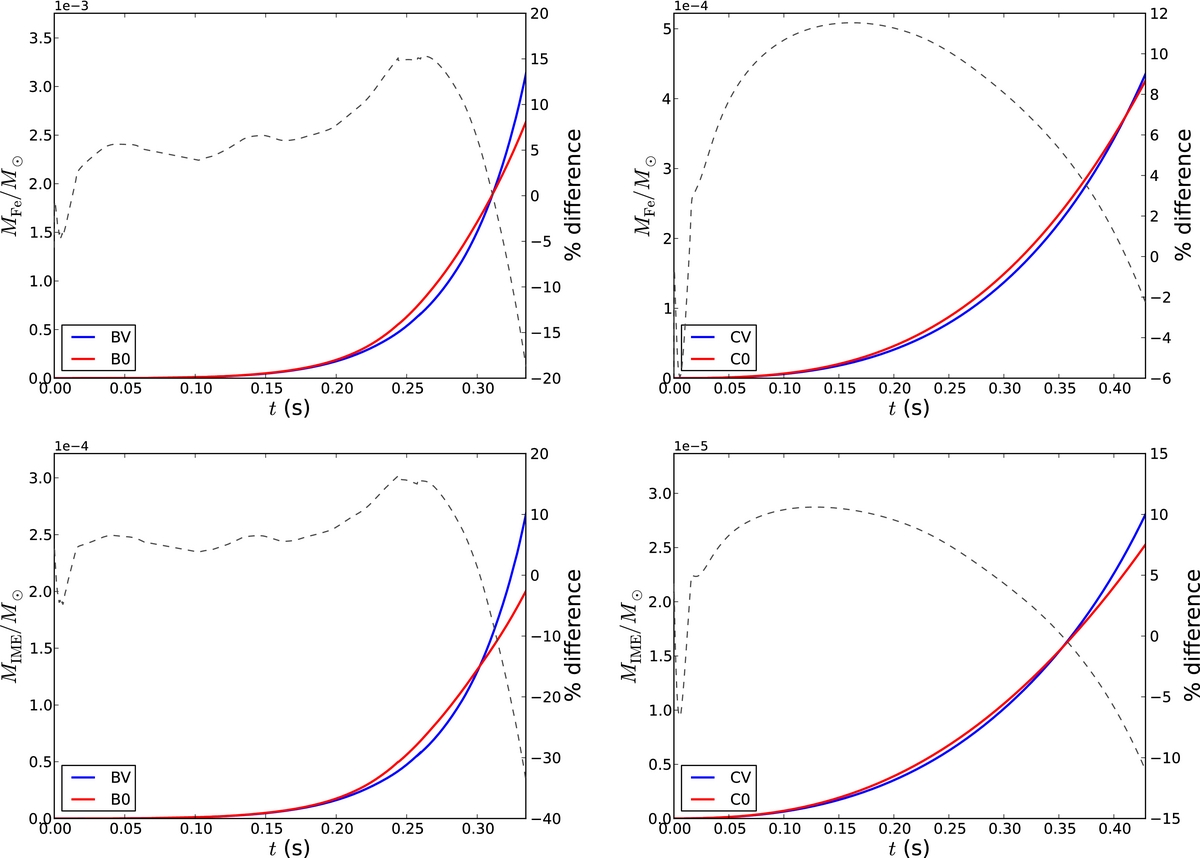

Caption: Figure 15.
Comparisons of nucleosynthetic yields of iron-group elements (top row) and IME (bottom row) for both the B series (left column) and C series (right column). The blue(red) lines correspond to models with(without) a background convective flow field. The dashed gray line shows the percent difference between models with and without the background field; positive values indicate more production in the models without the background field. These plots indicate that the more centrally ignited models with the background turbulence burn more material than those without, which is in contrast to the further off-center ignition models shown in Figure 10.
© 2014. The American Astronomical Society. All rights reserved.
