Water Absorption in Galactic Translucent Clouds: Conditions and History of the Gas Derived from Herschel/HIFI PRISMAS Observations

Authors: N. Flagey, P. F. Goldsmith, D. C. Lis, M. Gerin, D. Neufeld, P. Sonnentrucker, M. De Luca, B. Godard, J. R. Goicoechea, R. Monje, and T. G. Phillips

Flagey et al. 2013 The Astrophysical Journal 762 11.

Provider: AAS Journals

Caption: Figure 15.

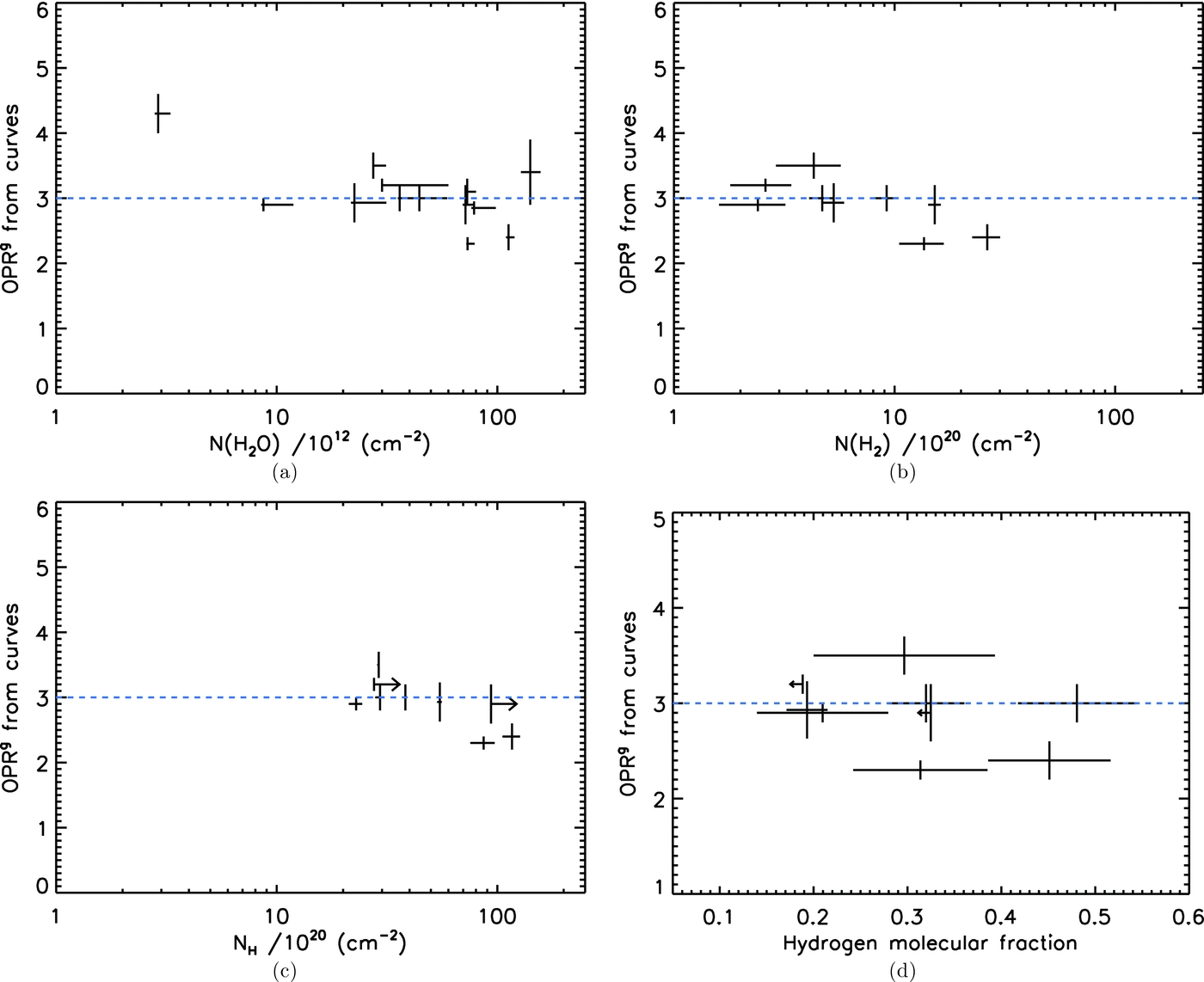

Water ortho-to-para ratio as a function of the water column density, the molecular hydrogen column density, the hydrogen nuclei column density, and the hydrogen molecular fraction. The dashed blue line shows the high-temperature limiting value of 3.
