Figure 21 from Submillimeter Array/Plateau de Bure Interferometer Multiple Line Observations of the Nearby Seyfert 2 Galaxy NGC 1068: Shock-related Gas Kinematics and Heating in the Central 100 pc?

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Submillimeter Array/Plateau de Bure Interferometer Multiple Line Observations of the Nearby Seyfert 2 Galaxy NGC 1068: Shock-related Gas Kinematics and Heating in the Central 100 pc?

Authors: M. Krips, S. Martín, A. Eckart, R. Neri, S. García-Burillo, S. Matsushita, A. Peck, I. Stoklasová, G. Petitpas, A. Usero, F. Combes, E. Schinnerer, L. Humphreys, and A. J. Baker

Krips et al. 2011 The Astrophysical Journal 736 37.

Provider: AAS Journals

Caption: Figure 21.

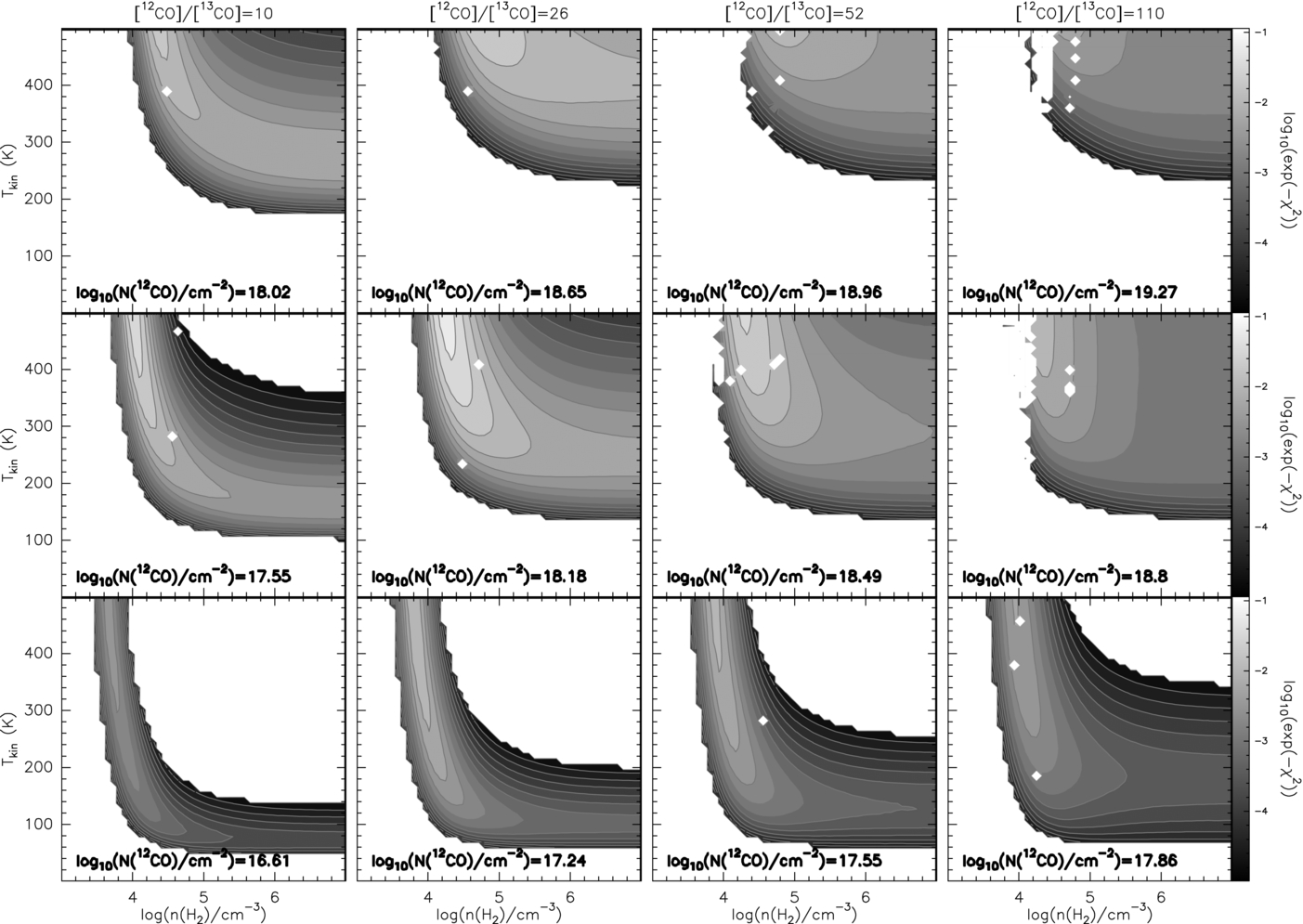

χ ² fit results obtained from the RADEX simulations of the excitation conditions of the molecular gas. Four different [ ¹²CO]/[ ¹³CO] abundance ratios (= 10, 26, 52, and 110) for three different ¹²CO column densities are shown. The middle panel shows the best χ ² fit found for each abundance ratio.
