Figure 6 from Submillimeter Array/Plateau de Bure Interferometer Multiple Line Observations of the Nearby Seyfert 2 Galaxy NGC 1068: Shock-related Gas Kinematics and Heating in the Central 100 pc?

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Submillimeter Array/Plateau de Bure Interferometer Multiple Line Observations of the Nearby Seyfert 2 Galaxy NGC 1068: Shock-related Gas Kinematics and Heating in the Central 100 pc?

Authors: M. Krips, S. Martín, A. Eckart, R. Neri, S. García-Burillo, S. Matsushita, A. Peck, I. Stoklasová, G. Petitpas, A. Usero, F. Combes, E. Schinnerer, L. Humphreys, and A. J. Baker

Krips et al. 2011 The Astrophysical Journal 736 37.

Provider: AAS Journals

Caption: Figure 6.

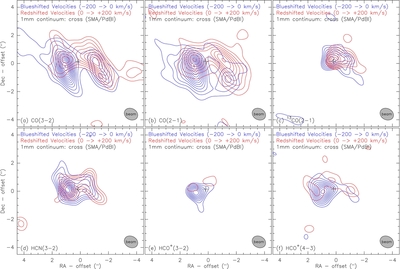

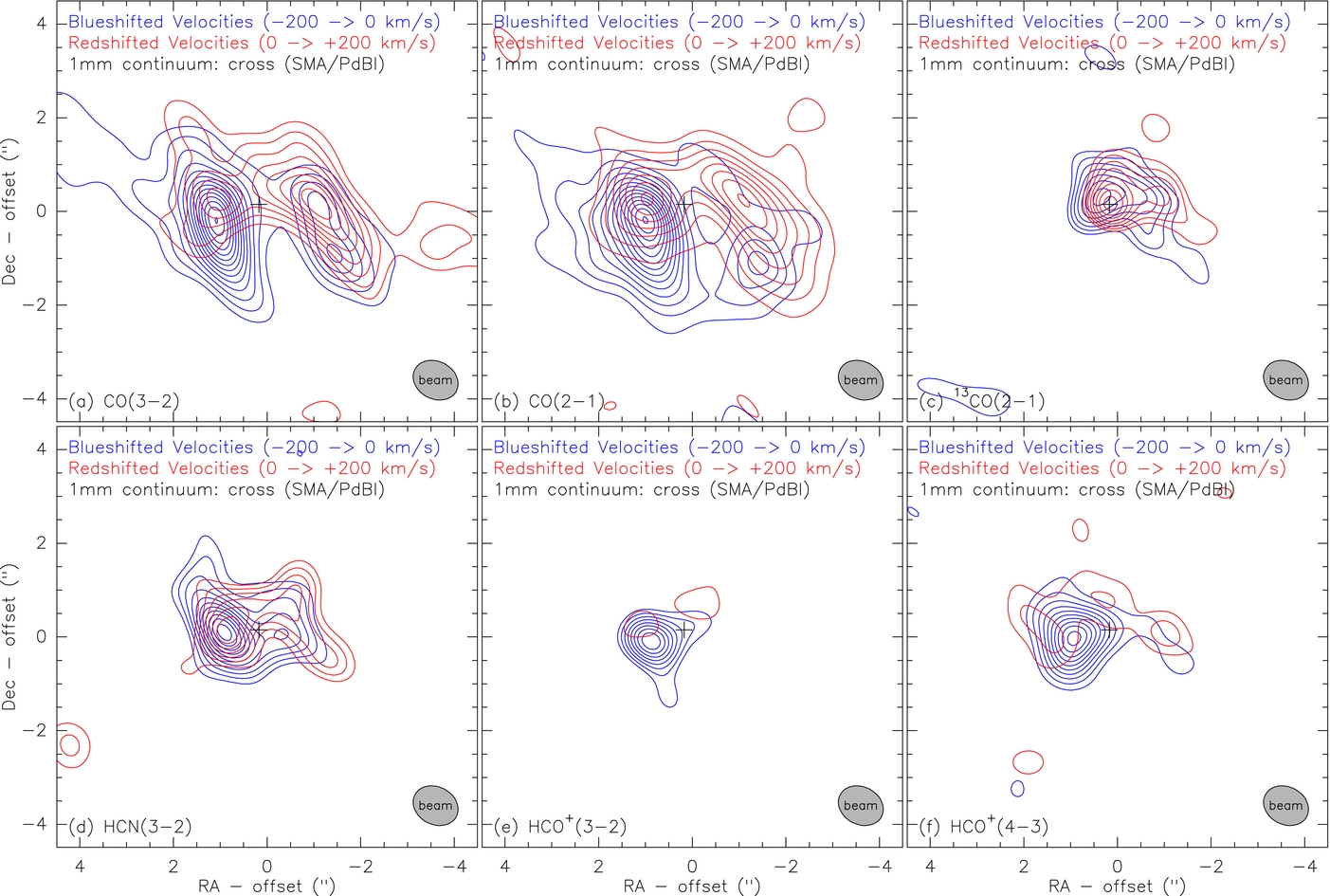

Redshifted and blueshifted emission of NGC1068. Contours are in steps of: (a) from 7σ by 5σ with 1σ = 2.0 Jy km s ⁻¹; (b) from 5σ by 5σ with 1σ = 0.9 Jy km s ⁻¹; (c) from 4σ by 1σ with 1σ = 0.5 Jy km s ⁻¹; (d) from 3σ by 1σ with 1σ = 1.9 Jy km s ⁻¹; (e) from 3σ by 1σ with 1σ = 2.3 Jy km s ⁻¹; and (f) from 2σ by 1σ with 1σ = 1.4 Jy km s ⁻¹.
