Panchromatic Observations and Modeling of the HV Tau C Edge-on Disk

Authors: G. Duchêne, C. McCabe, C. Pinte, K. R. Stapelfeldt, F. Ménard, G. Duvert, A. M. Ghez, H. L. Maness, H. Bouy, D. Barrado y Navascués, M. Morales-Calderón, S. Wolf, D. L. Padgett, T. Y. Brooke, and A. Noriega-Crespo

DUCHÊNE et al. 2010 The Astrophysical Journal 712 112.

Provider: AAS Journals

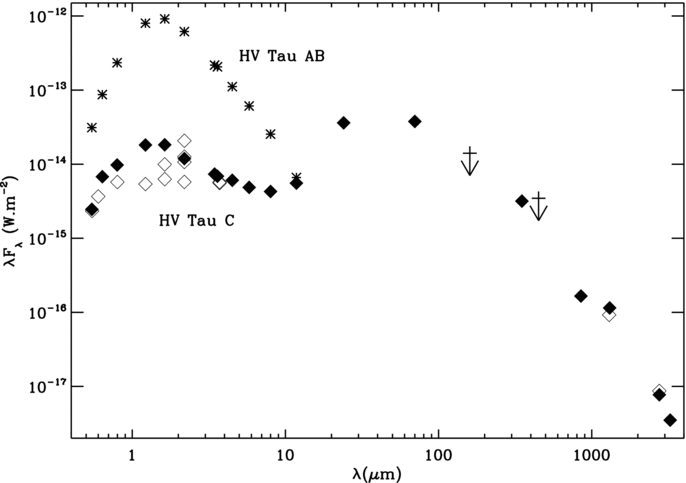

Caption: Figure 7.

SED of HV Tau AB (asterisks) and HV Tau C (diamonds). Filled diamonds and upper limits indicate the photometry data set considered in our model fitting (see Table 3) whereas empty diamonds represent photometry at other epochs, illustrating in particular the optical and near-infrared variability of HV Tau C.
