Estimating the Chromospheric Absorption of Transition Region Moss Emission

Authors: Bart De Pontieu, Viggo H. Hansteen, Scott W. McIntosh, and Spiros Patsourakos

De PONTIEU et al. 2009 The Astrophysical Journal 702 1016.

Provider: AAS Journals

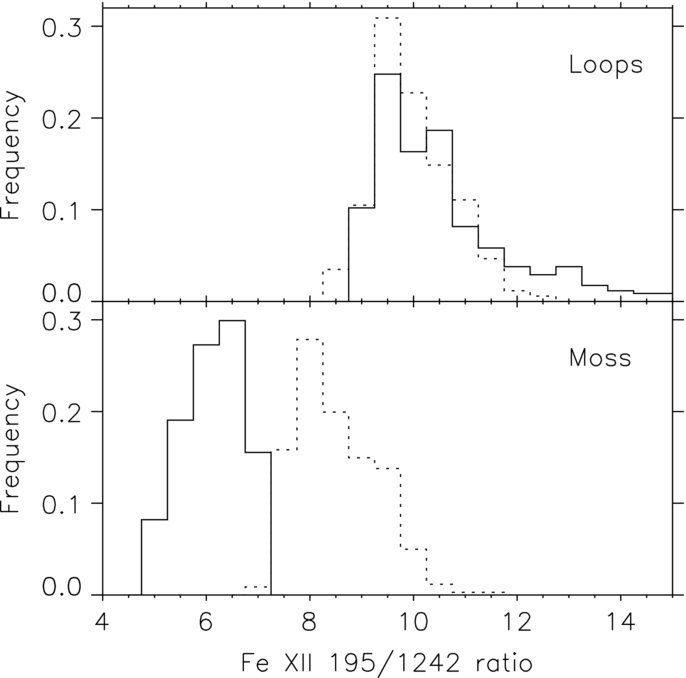

Caption: Figure 2.

Comparison of histograms of the observed (full lines) and predicted (dotted lines) values of the 195.1 Å to 1242 Å intensity ratio in coronal loops A and F (top row), and moss region MA (bottom row). See Section 2 for the definition and location of loop and moss regions.
