Figure 5 from Turbulence and Magnetic Field Amplification in Supernova Remnants: Interactions Between a Strong Shock Wave and Multiphase Interstellar Medium

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF

Turbulence and Magnetic Field Amplification in Supernova Remnants: Interactions Between a Strong Shock Wave and Multiphase Interstellar Medium

Authors: Tsuyoshi Inoue, Ryo Yamazaki, and Shu-ichiro Inutsuka

INOUE, YAMAZAKI, & INUTSUKA 2009 The Astrophysical Journal 695 825.

Provider: AAS Journals

Caption: Figure 5.

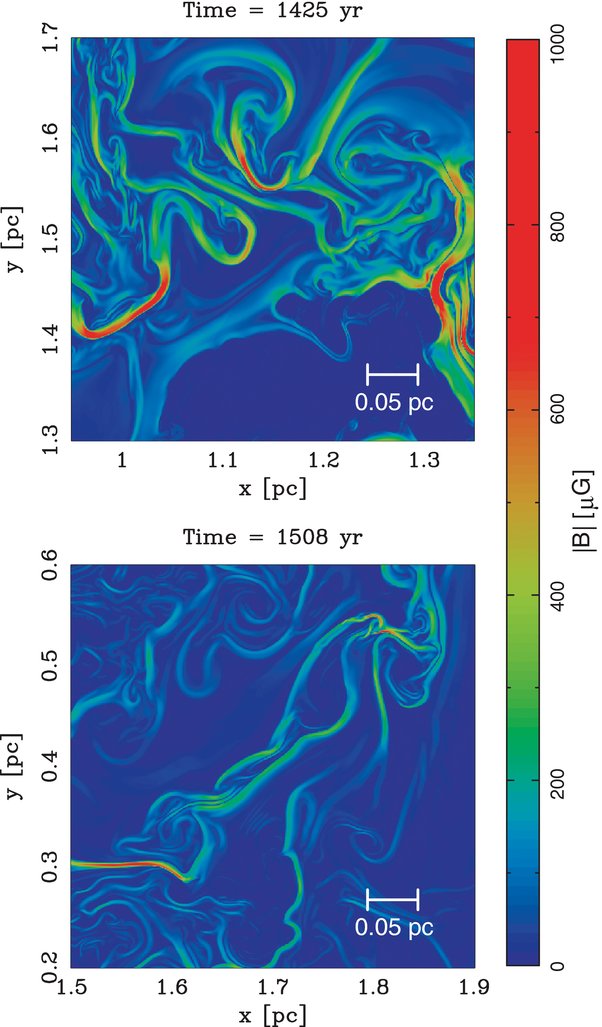

Closeup views of the magnetic field strength distribution of Models 1 (top) and 2 (bottom). The regions depicted in red have field strength larger than 600 μG.
