Figure 4 from Turbulence and Magnetic Field Amplification in Supernova Remnants: Interactions Between a Strong Shock Wave and Multiphase Interstellar Medium

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF

Turbulence and Magnetic Field Amplification in Supernova Remnants: Interactions Between a Strong Shock Wave and Multiphase Interstellar Medium

Authors: Tsuyoshi Inoue, Ryo Yamazaki, and Shu-ichiro Inutsuka

INOUE, YAMAZAKI, & INUTSUKA 2009 The Astrophysical Journal 695 825.

Provider: AAS Journals

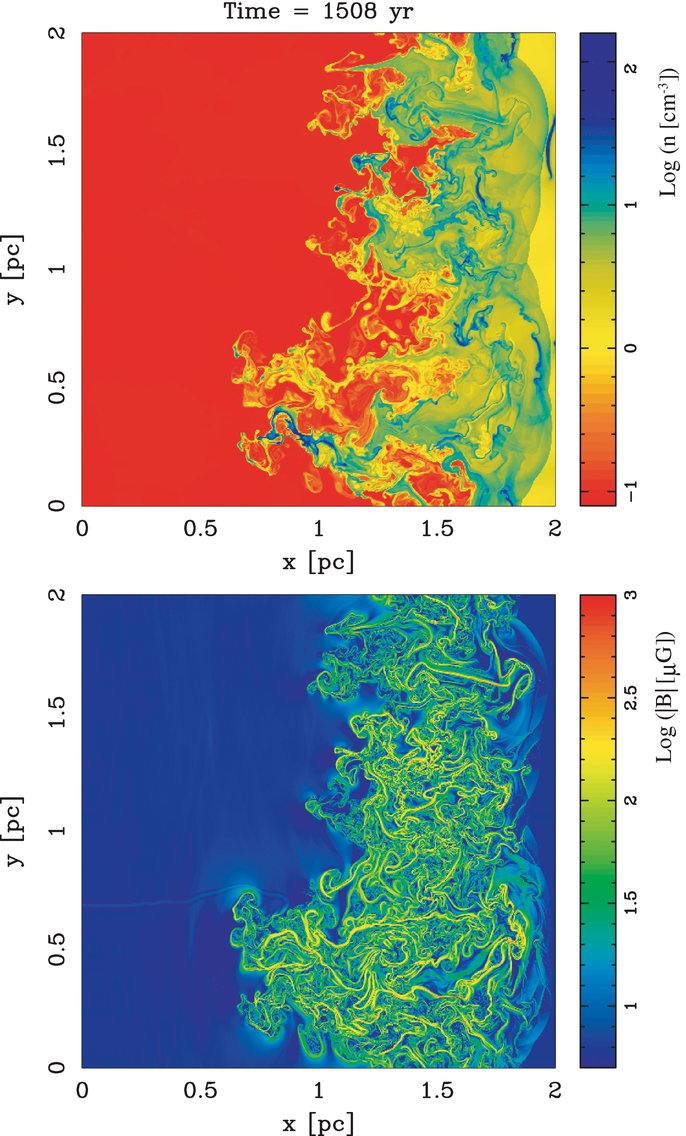

Caption: Figure 4.

Results of Model 2. The top and bottom panels respectively represent the structure of the number density and magnetic field strength. The color scale is the same as Figure 3.
