Asteroseismology of the Multiplanet System K2-93

Authors: Mikkel N. Lund, Emil Knudstrup, Víctor Silva Aguirre, Sarbani Basu, Ashley Chontos, Carolina Von Essen, William J. Chaplin, Allyson Bieryla, Luca Casagrande, Andrew Vanderburg, Daniel Huber, Stephen R. Kane, Simon Albrecht, David W. Latham, Guy R. Davies, Juliette C. Becker, and Joseph E. Rodriguez

2019 The Astronomical Journal 158 248.

Provider: AAS Journals

Caption: Figure 1.

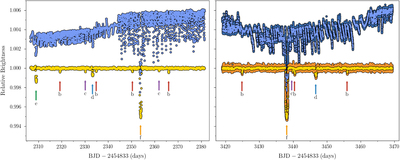

Light curve for HIP 41378 obtained during C5 (left) and C18 (right). The blue points show the raw photometry (offset by 0.04), while the yellow points show the light curve after correcting for the K2 systematics. Light colored points show data in LC, dark points (only in C18) show the SC data. Each of the identified transits of the five planets have been indicated with arrows.
