Fig. 9 from Tests and Comparisons of Velocity‐Inversion Techniques

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Tests and Comparisons of Velocity‐Inversion Techniques

Authors: B. T. Welsch, W. P. Abbett, M. L. DeRosa, G. H. Fisher, M. K. Georgoulis, K. Kusano, D. W. Longcope, B. Ravindra, and P. W. Schuck

Welsch et al. 2007 The Astrophysical Journal 670 1434.

Provider: AAS Journals

Caption: Fig. 9.

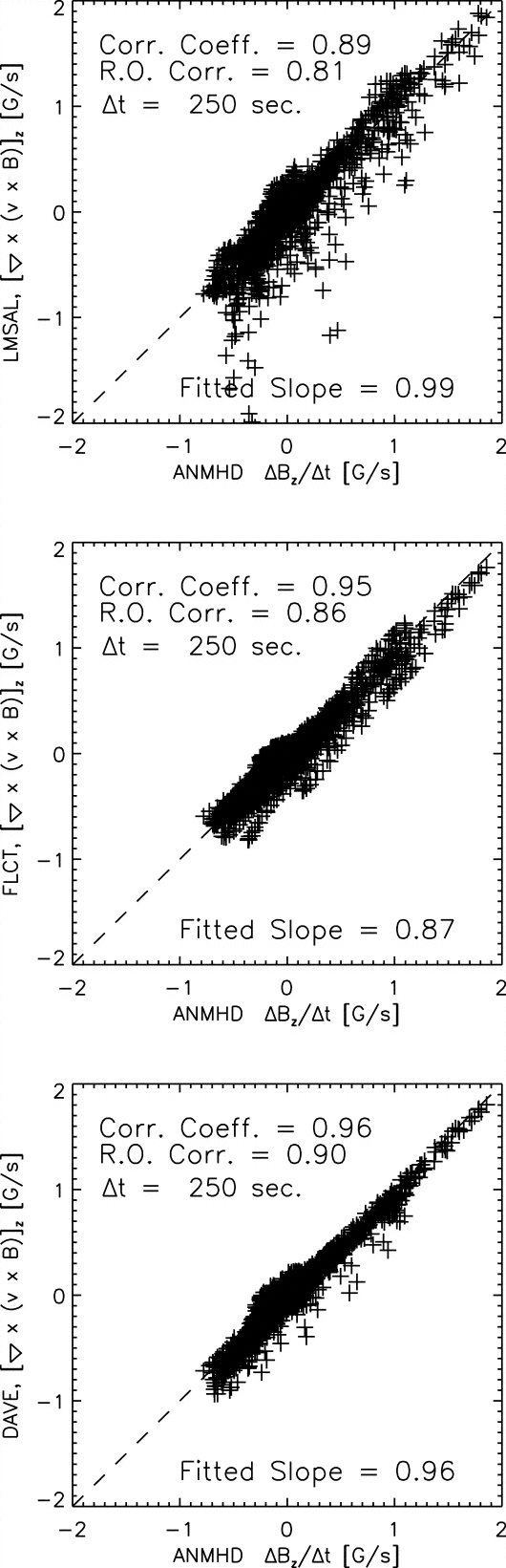

Pixel‐by‐pixel scatter plots of several methods’ (LMSAL’s LCT, FLCT, and DAVE; top to bottom) estimates of ﹩[ {\boldsymbol{\nabla}} \boldsymbol{\times} ( \boldsymbol{v}_{\perp }\boldsymbol{\times} \boldsymbol{B}) ] {\boldsymbol{\cdot}} \hat{\boldsymbol{z}}﹩ for ﹩\Delta t=250﹩ s, which should match ﹩\Delta B_{z}/ \Delta t﹩ assuming ideal MHD.
