Fig. 3 from Tests and Comparisons of Velocity‐Inversion Techniques

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Tests and Comparisons of Velocity‐Inversion Techniques

Authors: B. T. Welsch, W. P. Abbett, M. L. DeRosa, G. H. Fisher, M. K. Georgoulis, K. Kusano, D. W. Longcope, B. Ravindra, and P. W. Schuck

Welsch et al. 2007 The Astrophysical Journal 670 1434.

Caption: Fig. 3.

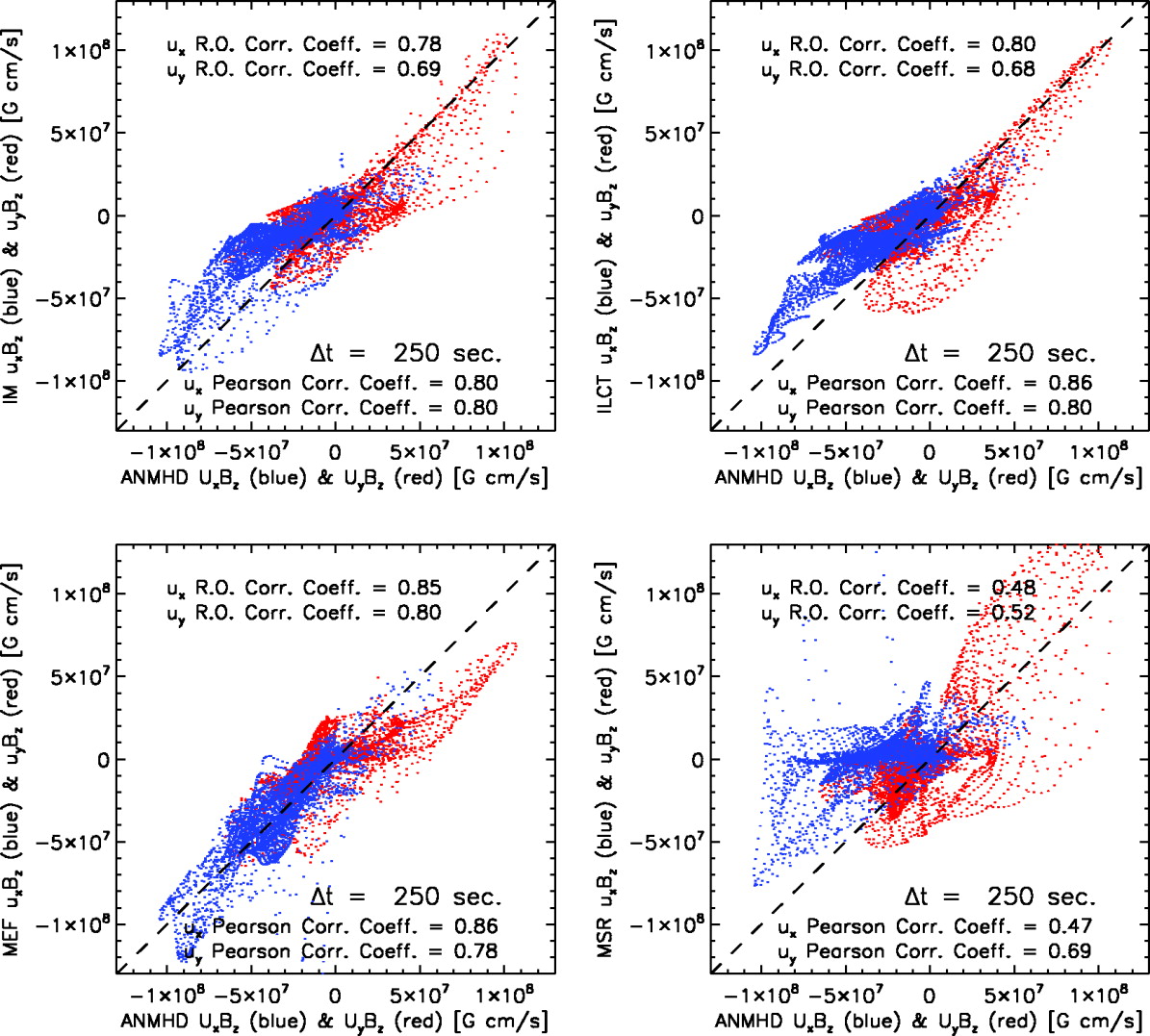

As with Fig. 2, but with the remaining methods’ (IM, ILCT, MSR, and MEF; clockwise from top left) flux transport estimates.
